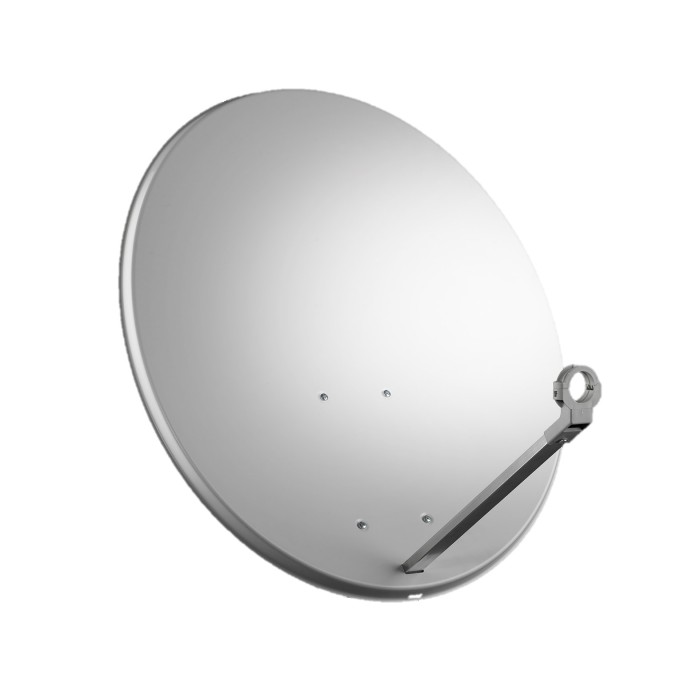

TELE System PF80 Aluminum mirror 845x745mm

TELE System PF80

Aluminum mirror 845x745mm

TELE System PF80 is a aluminum mirror with dimensions 845x745 mm. In particular, it contains a galvanize steel back support and a plastic LNB holder. Simple assembling and pre-mounting possible.

Features

Dish dimensions (external) (mm): 845x745

Gain at 10,75 GHz (dB): 37

Gain at 11,75 GHz (dB): 38,1

Gain at 12,75 GHz (dB): 39,1

Half power beamwidth at 12,75 GHz (deg): < 2,2°

Cross polar discrimination on main axis (dB): > 27

Mast clamp for (mm): 32 - 76

Elevation range (deg): 15° - 56°

Elevation with passing pole (deg): 42°

F/D ratio: 0,6

Offset angle (deg): 25°

Windloading at 72 Km/h (Kg): 17

Windloading at 144 Km/h (Kg): 69

Windloading at 216 Km/h (Kg): 156

Feed bracket diameter (mm): 23 / 40

Available reflector material: steel

Available colours: white

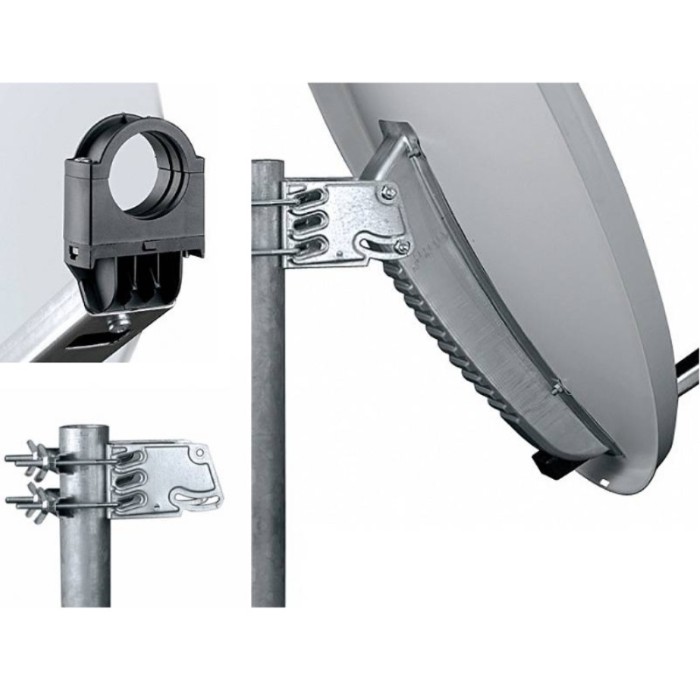

Back mount made of: galvanized steel

AZ/EL holder made of: galvanized steel

LNB Arm made of: aluminium (48x22) mm

LNB holder made of: plastic

The set contents

1x TELE System PF80 Aluminum mirror 845x745mm
