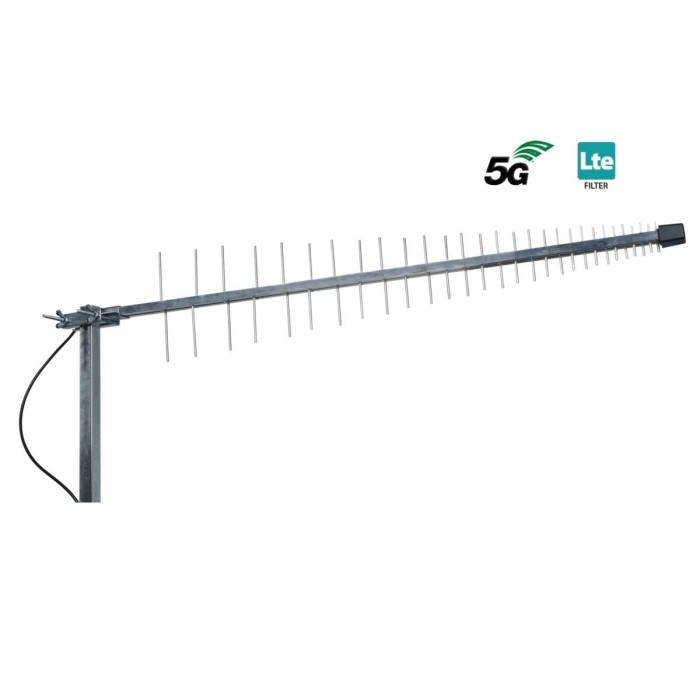

Iskra P-60 5G H/V UNICOM

Iskra P-60 5G H/V UNICOM

Antenna

The Iskra P-60 5G H/V UNICOM is an antenna used for the reception of mobile operators' signals, with reliable and robust design for optimum performance and long life time. It covers wide frequency range from LTE 700 to LTE 5G 3.8 GHz frequency bands. Easy to install. A major feature of that antenna is that they all have a built-in type »SMA« male connector for simple installation to the antenna.

Features

Freq. band (frequency): LTE 700 (698-790 MHz), LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz), LTE 2,6 GHz (2,5-2,7 GHz) and LTE 5G (3,3 – 3,8 GHz)

No. of elements: 60

Gain: 8,5-10,5 dB(i)

Max VSWR (Maks. VSWR): < 1,6 : 1

Front - Back ratio: 23 db

Beam width: Horizontal 52°; Vertical 44°

Impedance: 50 Ohm

Max. power connection: 50 Watt

Antenna length: 110 cm

Connection Cable 10m with SMA female connector

Coaxial cable: impedance 50 Ohm
