Fuba DAT920 - LTE Antenna

Fuba DAT920 - LTE

Antenna

Fuba DAT920 - LTE is a tv antenna grid specially prepared for areas with LTE coverage, which can interfere with the DVB-T signal. The antenna has an LTE filter that prevents interference in the band up to 790 MHz. Adjustable in every plane. High quality and extremely easy assembly are the other features that characterize the Fuba DAT920 antenna. The antenna is entirely made of materials resistant to rust and corrosion - aluminum alloy and specially hardened ABS plastic. The durability of the antenna has been confirmed in rigorous tests in terms of adverse weather conditions, resistance to strong wind and resistance to harmful effects of acid rain.

Feautures of LTE Antenna

• Possibility of assembly without tools.
• Possibility of horizontal and vertical positioning.

• Adjustable elevation angle ± 15 °.
• Watertight dipole with integrated "F" connector.
• Built-in LTE filter.

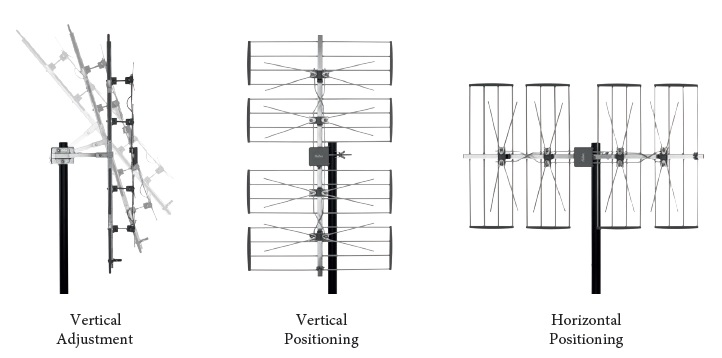

Adjustment & Positioning

Feautures

Number of elements: 4

Band: UHF

Channel range: 21 ÷ 60

Bandwidth: 470 ÷ 790 MHz

Max. gain (db): 12

Type of connector: F

Impendance (Ω): 75

Front / Back Report: > 14 dB

Polarization: Horizontal Vertcal

"Tilt" adjustment: ± 15 °

Pole connection: 25 ÷ 60 mm

Max. Width: 360 mm

Max. Height: 70 mm

Max. Length: 840 mm

Weight: 1.5 kg

LTE filter: Yes

The set contents

1 x Fuba DAT920 - LTE Antenna
