Johansson 7724L2 VHF-UHF - Line Amplifier LTE/5G

Johansson 7724L2

VHF-UHF - Line Amplifier LTE/5G

 Johansson 7724L2 is a line amplifier with 1 input (40-320 + 470-694 MHz) and 4 outputs. With built-in LTE/5G filter.

Feautures of VHF-UHF line amplifier

• 1 input: 40-320 + 470-694 MHz
• 4 outputs
• adjustable VHF gain: 13-28 dB
• adjustable UHF gain: 15-25 dB
• 24VDC switchable remote power
• power LED indicator
• wall and DIN rail mountable

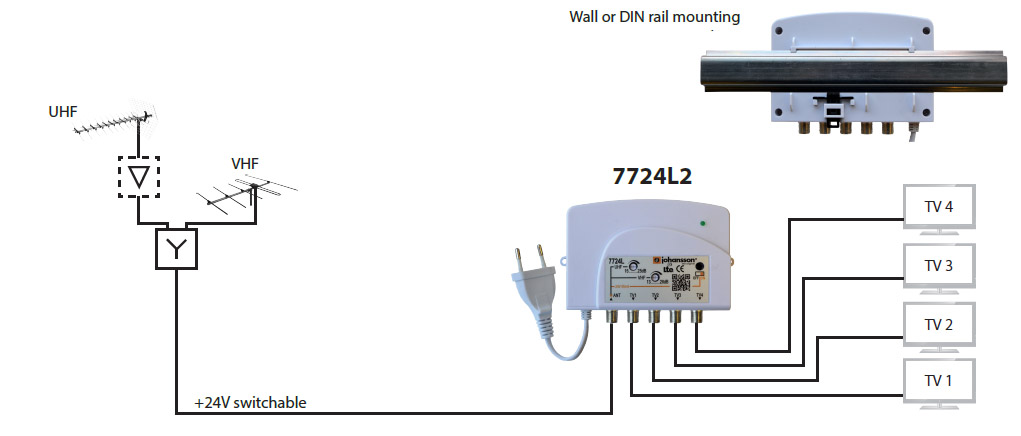

How it works?

Features

Frequency range (MHz): 40-320 + 470-694

Adjustable gain (dB): VHF: 13-28, UHF: 15-25

Noise figure (dB): 3.0 typ.

Max. output level (dBµV): 102

Return loss (input/output) (dB): 10

Isolation between outputs (dB): 15

Remote power: 24V / 55mA

Power: 230V~/6.9VA

Mounting: Wall or DIN rail mounting

The set contents

1x Johansson 7724L2 VHF-UHF - Line Amplifier LTE/5G

1x Safety Instructions
