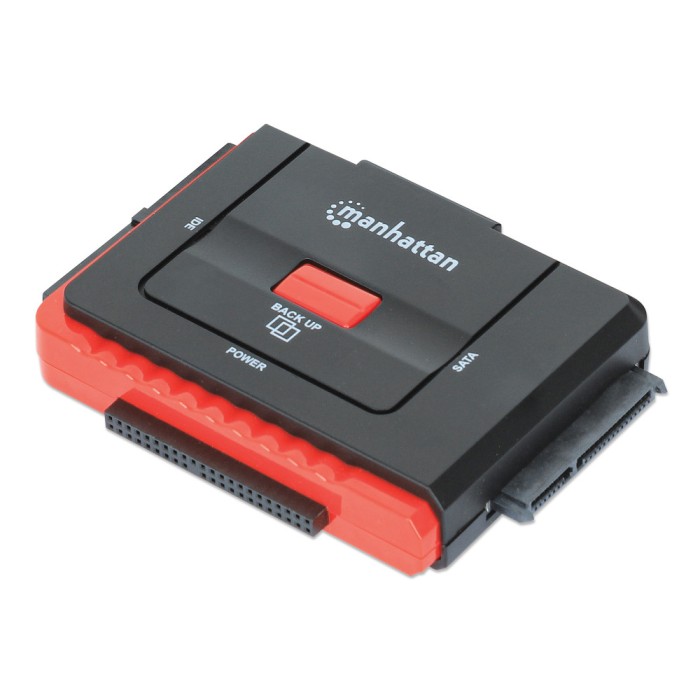

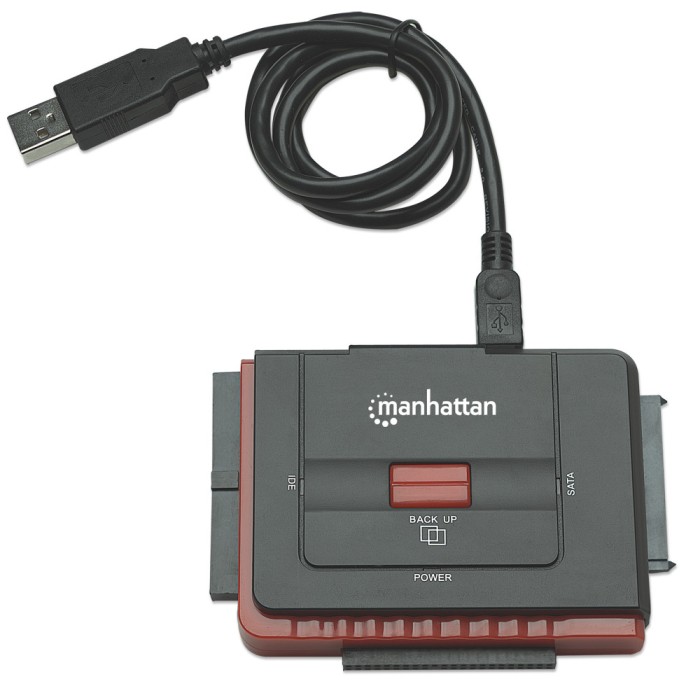

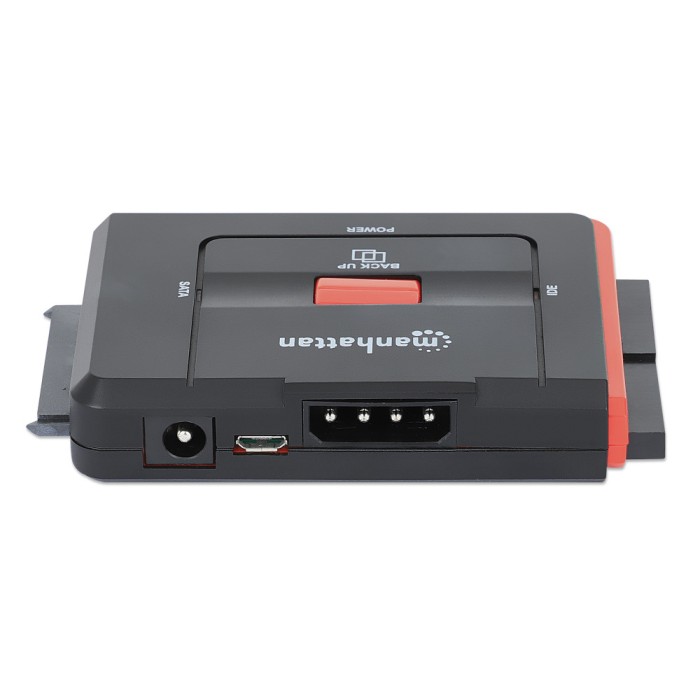

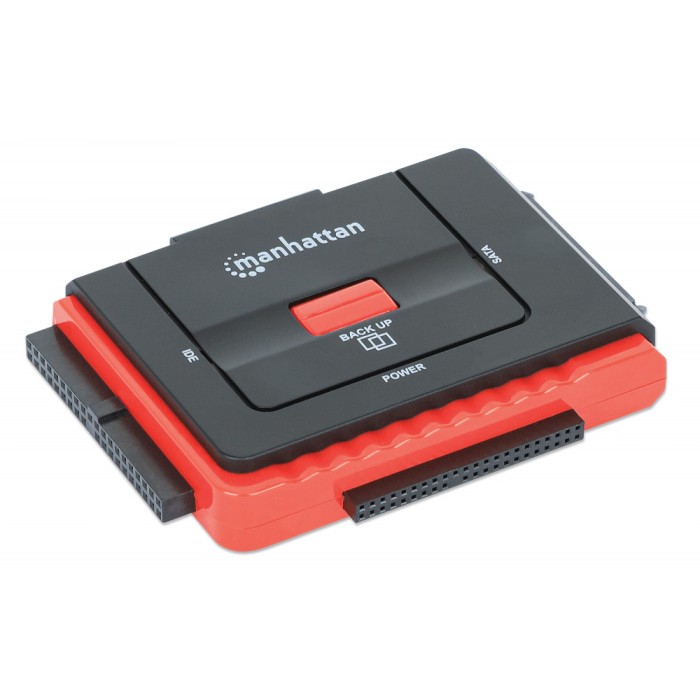

Manhattan IUSB-ADAPT - Hi-Speed ​​Converter to SATA/IDE

Manhattan IUSB-ADAPT

Hi-Speed ​​Converter to SATA/IDE

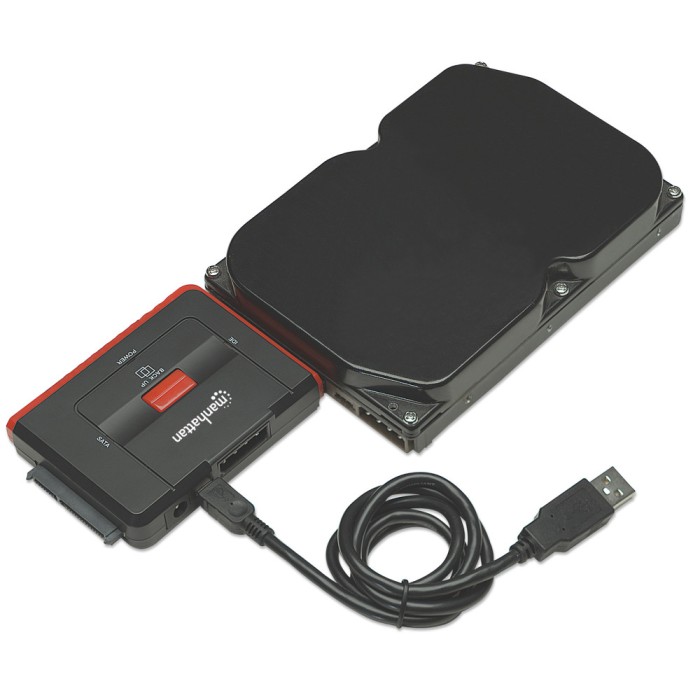

The USB 2.0 Hi-Speed ​​to SATA/IDE Converter Adapter is the ideal solution for connecting old or new SATA and IDE hard drives to a computer via USB. It allows for fast data access, file transfer and backup with ease, without the need for internal installation. It supports simultaneous connection of SATA and IDE drives, offering convenience for technicians, computer upgrades or file recovery.

Features

General

• Compatible with SATA & IDE hard drives and drives up to 5.25"
• Fast connection via USB 2.0 Hi-Speed ​​up to 480 Mbps
• Supports SATA, SATA Enhanced, IDE and IDE Enhanced devices
• Simultaneous data transfer between SATA and IDE drives when connected together
• One-touch backup for easy backup creation
• Plug & Play function – no driver installation
• Hot-swappable connection for quick device swapping
• Compatible with Windows, macOS and Linux
• Supports 48-bit LBA (Logical Block Addressing) for larger drives
• Includes power supply and connection cables for immediate use

Technical specifications

• USB 2.0 Type-A Male
• SATA Type-L Male
• IDE 40-pin
• IDE 44-pin

Maximum USB transfer speed: 480 Mbps

SATA support: up to 1.5 Gbps

Supported standards: USB 2.0, USB 1.1, ATA/ATAPI-100 v1.0, SATA 1.0a

Drive support: SATA, SATA Enhanced, IDE, IDE Enhanced

Maximum drive size: up to 5.25"

Power supply:

• Input: 100–250V AC, 50/60Hz, max 0.5A
• Output: 5V/2A & 12V/2A

Cable length:

• USB cable: 76.2 cm
• SATA cable: 10 cm
• SATA Y Power cable: 76.2 cm
• Power cable: 1.7m

System Requirements

• Available USB Type A port
• Windows 2000/XP/Vista/7/8
• Mac and Linux compatible

Certifications

• THERE IS
• FCC
• WEEE

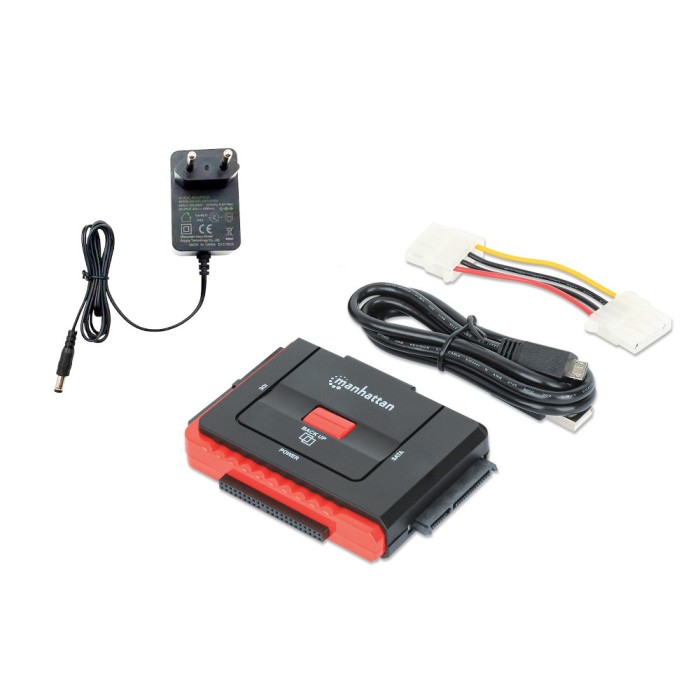

The set contents

1x Manhattan IUSB-ADAPT - Hi-Speed ​​to SATA/IDE Converter

1x Power Supply

1x Instruction Manual and Software CD
