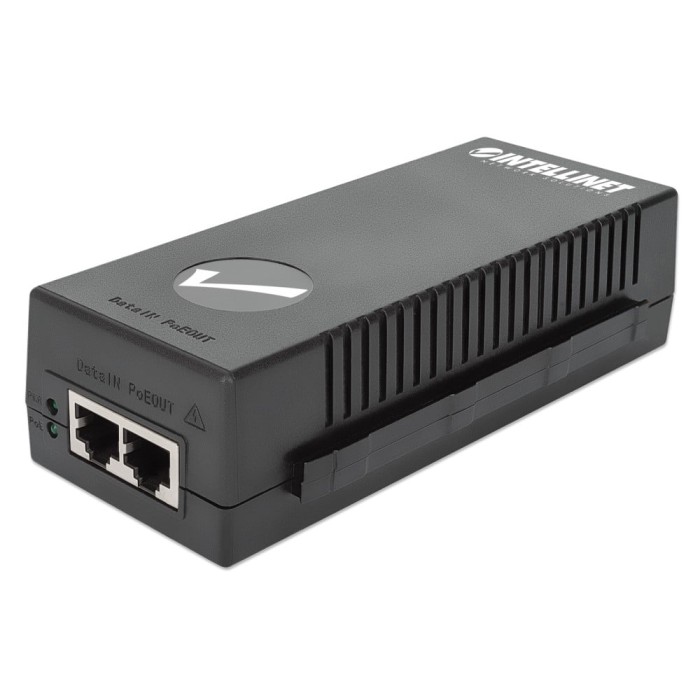

Gigabit PoE+ Ultra Power Injector 100m

Intellinet I-SWHUB GB-500 Gigabit

5 Port Ethernet Switch

With the Gigabit PoE+ Ultra Power Injector 100m you save time and money by providing data and power over a wired network. The Gigabit PoE+ Ultra Power Injector 100m is compliant with IEEE 802.3bt (Ultra-PoE+), IEEE 802.3at and IEEE 802.3af standards. It provides up to 60 watts of output power over a four-pair Cat5 or Cat6 network cable and supports IEEE 802.3at and IEEE 802.3af compliant devices (wireless access points and bridges, Voice over Internet Protocol [VoIP] phones, IP surveillance cameras.

Features

• Supports: 100Base-TX Cat5 UTP/STP RJ45, 8 pin, 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• One 10/100/1000 Mbps RJ45 input port
• One 10/100/1000 Mbps RJ45 output port for data and power
• Protection functions: Short circuit protection, Over current protection, Over voltage protection
• Dual color LED for power and PoE
• Input: 100 – 240 V AC, 50 – 60 Hz
• Output: 48V DC, 1.25A
• Power consumption: 60 watts (maximum)
• Physical information
• Plastic case
• Dimensions: 123 (W) x 61 (D) x 40 (H) [mm]
• Weight: 0.29 kg
• Operating temperature: 0 – 40°C
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -20 - 80°C

Standards

IEEE 802.3af (Power over Ethernet)

IEEE 802.3at (High-Power PoE+ Power over Ethernet)

IEEE 802.3bt (4 Pair Power over Ethernet, level 3, 55 w)

IEEE 802.3 (10Base-T Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3u (100Base-TX Fast Ethernet)

IEEE 802.3x (flow control for full duplex mode)

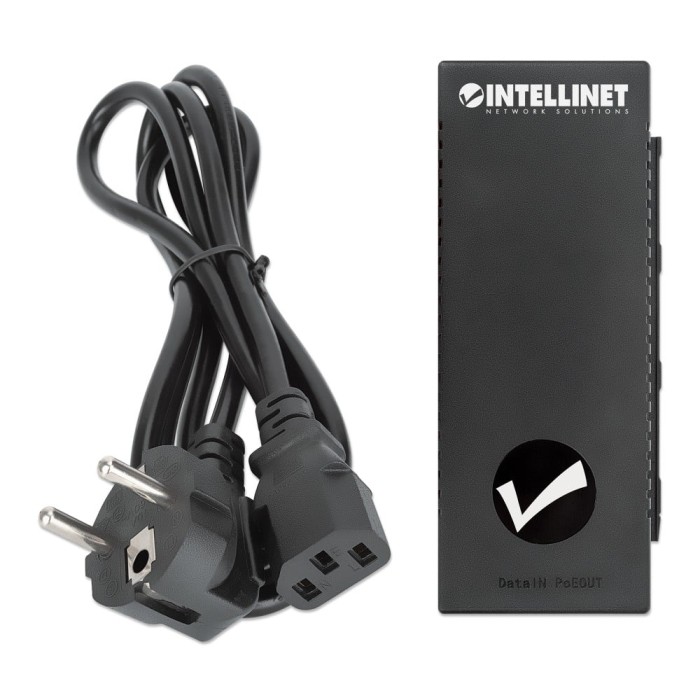

The set contents

1x Gigabit PoE+ Ultra Power Injector 100m
