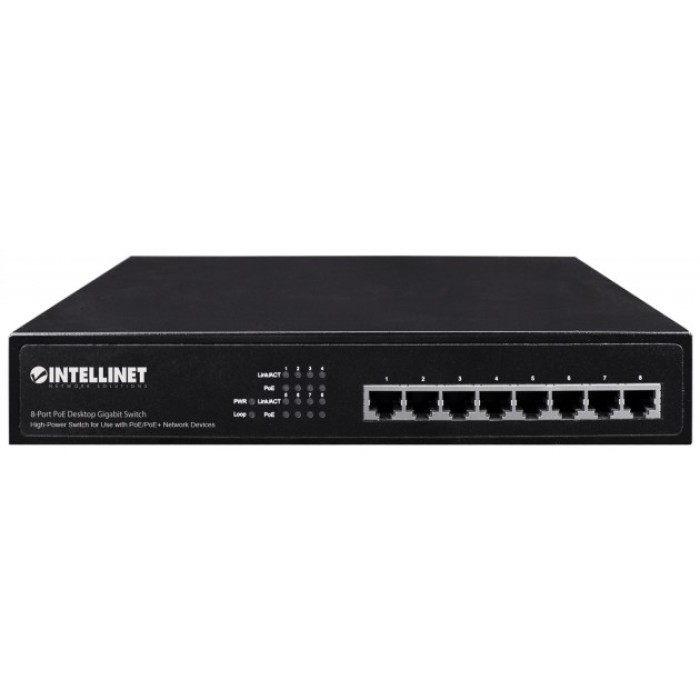

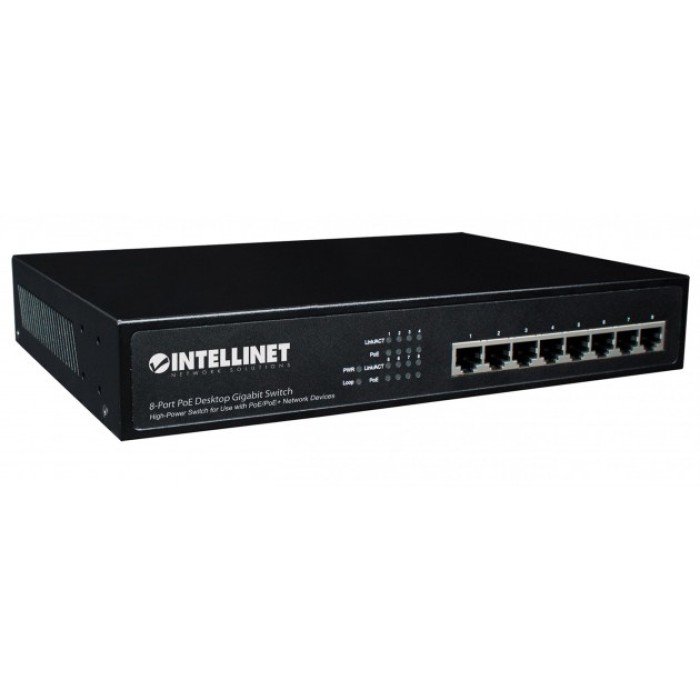

INTELLINET I-SWHUB 8GPE - 8 Port Gigabit Ethernet POE Switch

Intellinet I-SWHUB 8GPE

8 Port Gigabit Ethernet POE Switch

The Intellinet I-SWHUB 8GPE is a 8 Port Gigabit Ethernet POE switch and is ideal for use in the home or in the entertainment system as well as in many small office applications. Provides power and data connections for up to eight PoE network devices. Easily add Ethernet-ready devices to your home or office at Gigabit speeds. Small, powerful and reliable, this Gigabit Ethernet Switch is easy to install and connects up to eight Ethernet devices - computers, game systems, network printers, streaming media, Smart TVs ... up to 1000 Mbps (1 Gigabit) with standard Cat5e or Cat6 Ethernet cables. The automatic features of this switch make installation of plug and play without problems.

Features of Ethernet Switch

Features

General information

• Supported media:

             10Base-T Cat3, 4, 5 UTP / STP RJ-45

             100Base-TX Cat5 UTP / STP RJ-45

             1000Base-T Cat5e UTP / STP RJ-45

• Packet filter / forwarding rate:

             1.488.000pps (1000 Mbps)

             148.800pps (100 Mbps)

             14.880pps (10 Mbps)

• MAC address: 8k
• Memory buffer: 256 kB
• Backplane speed : 16 Gbps
• Switch architecture: store and forward
• Certifications: FCC Class B, VCCI Class B, CE, RoHS, EN 60950-1

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, full duplex mode)

Generally

• LEDs

             PoE

             Loops

             Power supply

             Activity / connection

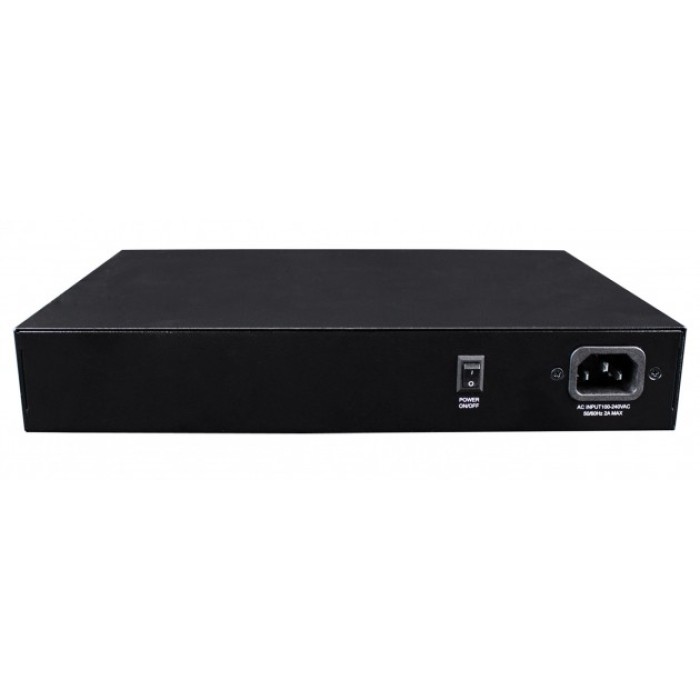

• Power supply

             Input: 100 ~ 240 V AC, 50 to 60 Hz

            Consumption: 150 watts (maximum)

• Metal housing

             Dimensions: 280 (W) x 180 (L) x 44 (H) mm

             Weight: 2.55 kg

             Operating temperature: 0 ° - 40 ° C

             Operating humidity: 10 - 90% RH, without condensation

             Storage temperature: from -20 ° to 70 ° C

The set contents

1x 8-port Gigabit PoE + Desktop Switch
