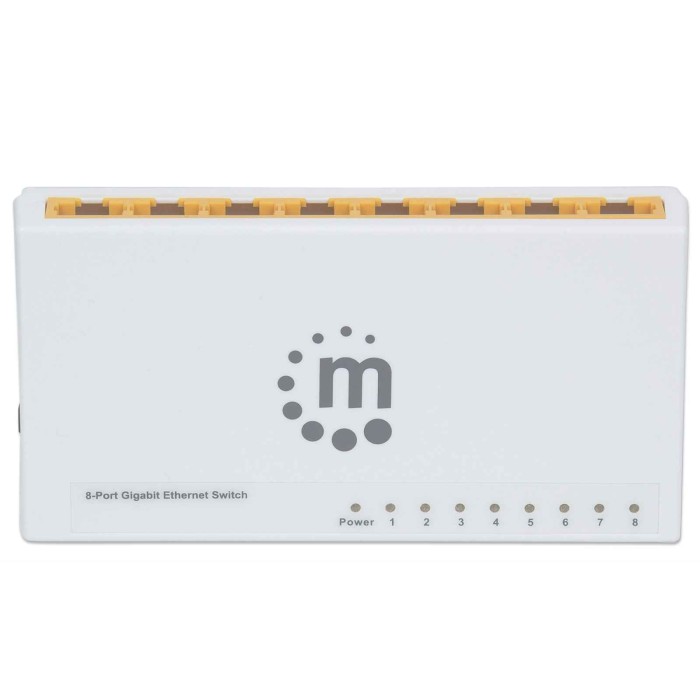

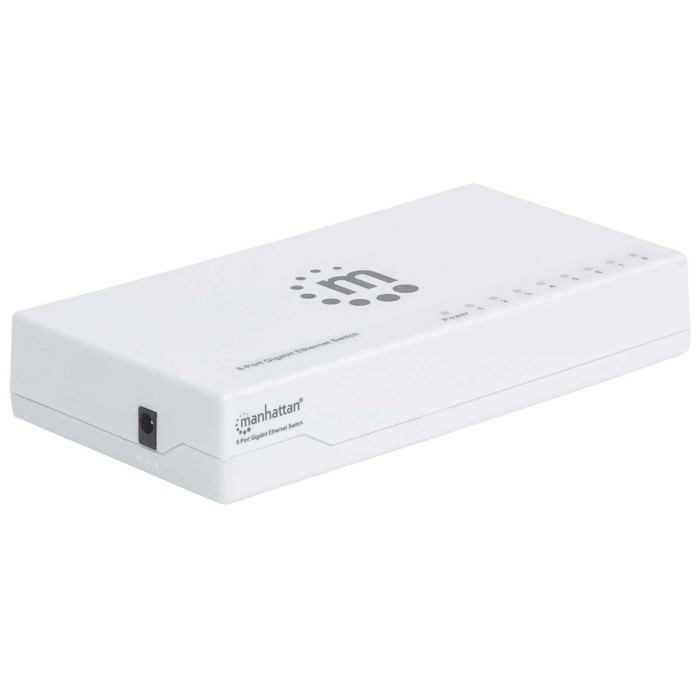

Manhattan I-SWHUB GB-080P Gigabit - 8 Port Ethernet Switch

Manhattan I-SWHUB GB-080P Gigabit

8 Port Gigabit Ethernet Switch

The Manhattan I-SWHUB GB-080P is a Gigabit - 8 Port Ethernet Switch ,ideal for use at home or in the entertainment system, as well as in many small office applications. Easily add Ethernet ready devices to your home or office with Gigabit speeds .Compact, robust and reliable, this Gigabit Ethernet Switch is easy to install and connects up to eight Ethernet devices - computers, game systems, network printers, streaming media, Smart TVs ... up to 1000 Mbps (1 Gigabit) with standard cables Cat5e or Cat6 Ethernet.The automatic features of this switch make installation of plug and play without problems. In addition, it features Green Ethernet technology, enabling it to monitor power usage and turn off unused ports to save electricity.

Features of Ethernet Switch

• The  Manhattan I-SWHUB GB-080P ,8-port Gigabit Ethernet switch expands your network at one time
• Easy plug-and-play installation - just turn it on and start using it
• Eight automatic 10/100/1000 ports automatically detect optimum network speeds
• High performance, half and full bidirectional, with zero packet loss
• Green Ethernet energy-saving technology turns off unused ports
• It supports any combination of 10 Mbps, 100 Mbps or 1 Gbps network devices
• Extremely compact fanless design, ideal for home and graphic applications
• Save and promote switching architecture
• Compatible with all Windows and Macintosh systems

Features

General information

Connections: 8 ports RJ45 10/100/1000 Mbps

Cable: Cat3, 4, 5 UTP / STP

Duplex Features: all ports (up to 200 Mbps)

Uplink: all Auto MDI / MDX (Auto Uplink) ports

Architectural design: storage and promotion technology

Filter / Forward Rate: - 10BaseT: 14,880 pps (packets per second) - 100Base-TX: 148,800 pps (packets per second) - 1000Base-T: 1.488,000 pps

MAC Address Table: 2,048 entries

Cache: 256 kBytes

Jumbo Frame Support: 9 kB

Speed ​​weight / backplane switch weight: 16 Gbps

Certifications: FCC Class B, CE, RoHS

Indicator Lights: Power, Connectivity / Activity

Standards

IEEE 802.3 (10Base-T Ethernet)

IEEE 802.3u (100Base-TX Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3x (flow control)

IEEE 802.3az (Energy Efficient Ethernet)

Generally

External AC Adapter: 5 V, 1 A

Operating Environment

Dimensions: 140 (w) x 78 (l) x 28 (h) mm (5.5 x 3.07 x 1.1 in.)

Weight: 0.33 kg (0.73 lbs)

Operating temperature: 0 - 40˚C (32 - 104˚F)

Humidity: 10 - 90% (without condensation)

The set contents

1x Manhattan I-SWHUB GB-080P Gigabit - 8 Port Ethernet Switch

1x Power Supply Unit (5 V / 1 A DC)

1x Quick Setup Guide
