Marmitek Split TS14 - Toslink digital audio splitter 1 Input / 4 Outputs

Marmitek Split TS14

Toslink digital audio splitter 1 Input / 4 Outputs

Marmitek Split TS14 is an  optical (Toslink) digital audio splitter. You can connect one device into the optical digital input and split it into four optical digital outputs without delay or loss of quality!

Feautures of Toslink splitter

• The Optical (Toslink) Digital Audio Splitter can split a single optical digital input to four outputs without delay or loss of qualtiy.
• Ideal for presentation or distribution to another room.
• With improved 192kHz sample rate for the best sound reproduction.
• Supports the S/PDIF and Toslink standard.
• Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) audio signal.
• Supports compressed 2-channel and multi-channel Dolby Digital and DTS audio signals.

How it works?

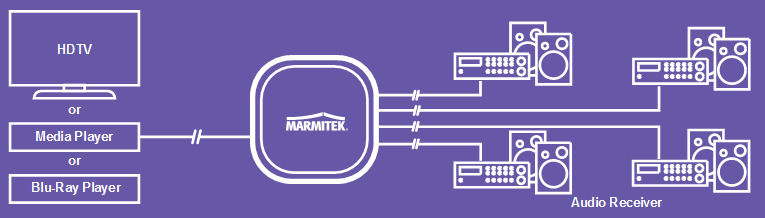

Connect your device into the digital input of Marmitek Split TS14 using an optical audio cable. Then, use four optical cables to connect the audio amplifiers to the digital audio outputs. Connect the adapter to the converter and a power outlet. Finally, turn on your device.

Features

Audio Input: 1 x Optical (Toslink)

Audio Output: 4 x Optical (Toslink)

Supported Audio: PCM2, Dolby Digital 5.1 & DTS 5.1

Sample rate: up to 192kHz]

Power: 100-240VAC @ 50-60Hz

The set contents

1 x Digital Audio Switcher

1x Power adaptor

1x User Manual
