Manhattan IDATA HDMI-213C - HDMI Splitter 1x2

Manhattan IDATA HDMI-213C

HDMI splitter - 1 in/ 2 out

With Manhattan IDATA HDMI-213C you can easily distribute a single HDMI signal from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. Ideal for trade shows, classrooms, video conferencing, presentations and domestic applications. It has a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when HDMI source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications. Full compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that it can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable. Does not need complicated settings or software or hardware configurations necessary.

Feautures of hdmi splitter

• Displays video from one HDMI source on two HD displays.
• Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more.
• Cascadable up to three levels to expand signal distribution to more displays.
• HDCP compliant.
• Supports LPCM, DTS@ Digital, DTS-HD Master Audio and Dolby TrueHD audio.
• Supports 1080p HD resolution, 3D video and Deep Color.
• Supports the video amplifier bandwidth up to 2.25 Gbps.
• Plug-and-play installation, no special setup or remote.
• Gold-plated contacts for corrosion-free connections.
.

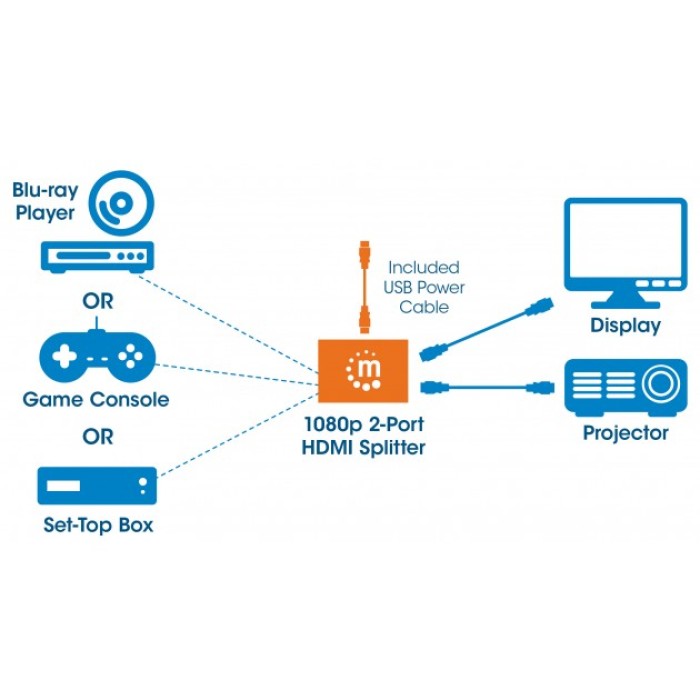

How it works?

Features

Standards and Certifications

HDCP 1.0 / 1.1 / 1.2 , DVI 1.0, CE, FCC, RoHS2

General

Distance source-splitter: up to 15 m

Splitter-monitor distance: up to 15 m

Power supply: 5 W, USB cable, 0.7 m

Connections

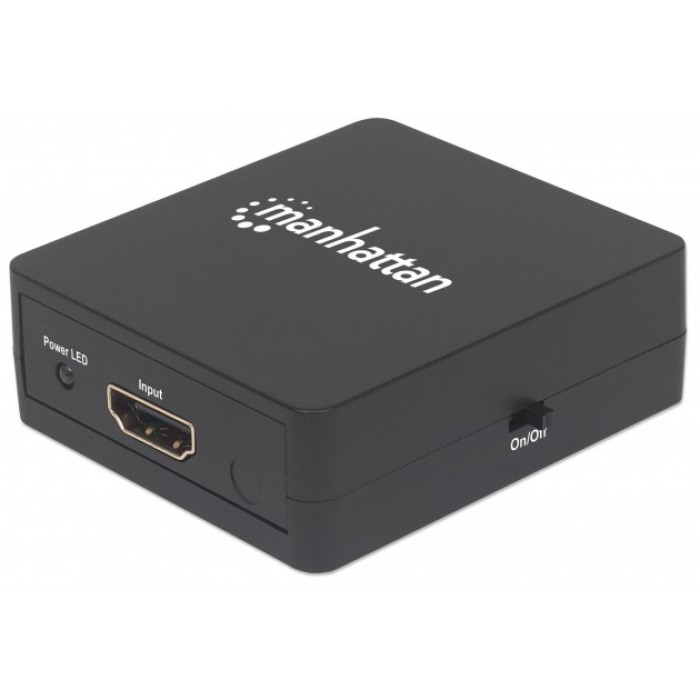

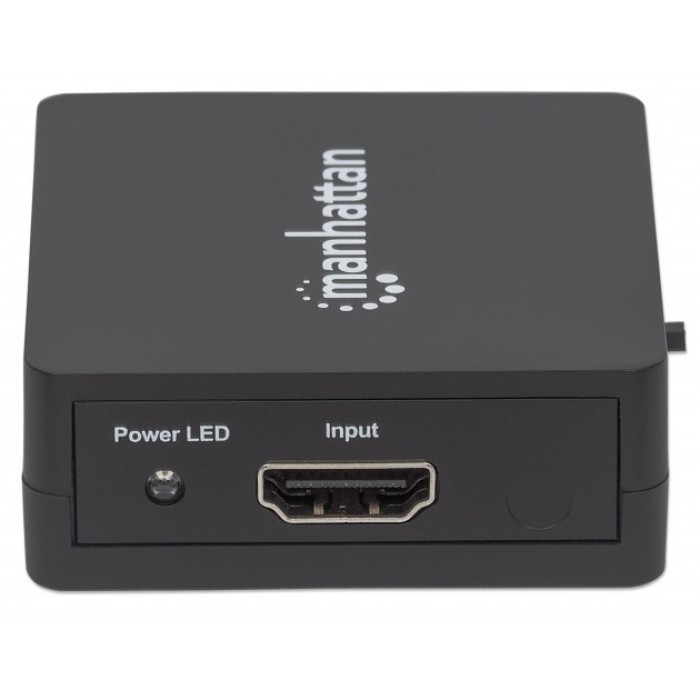

One HDMI female, 19-pin (input)

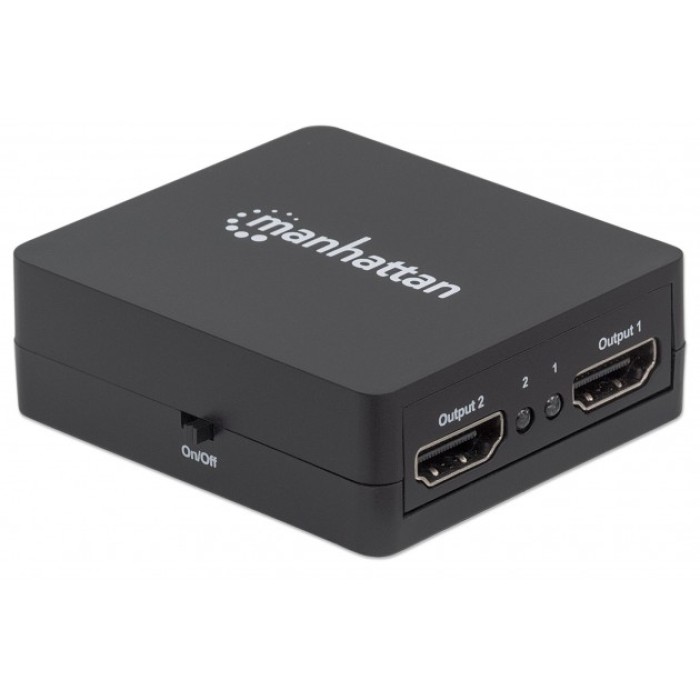

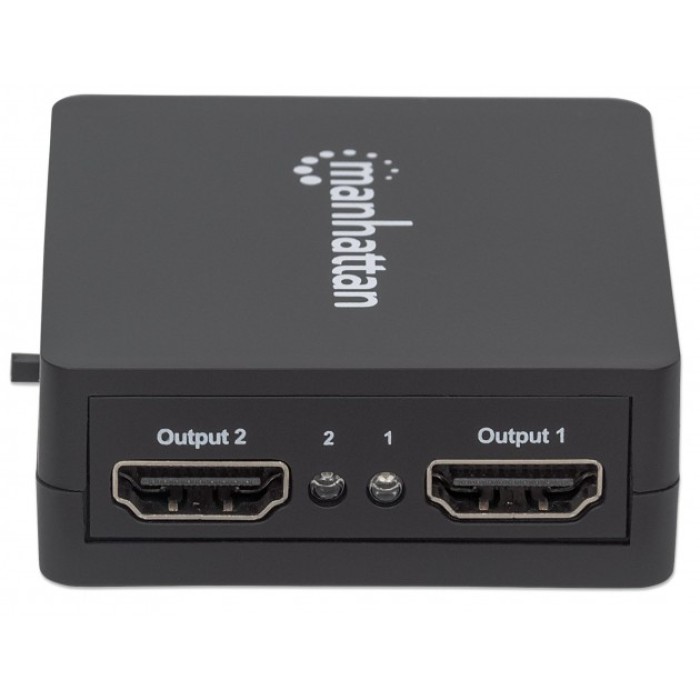

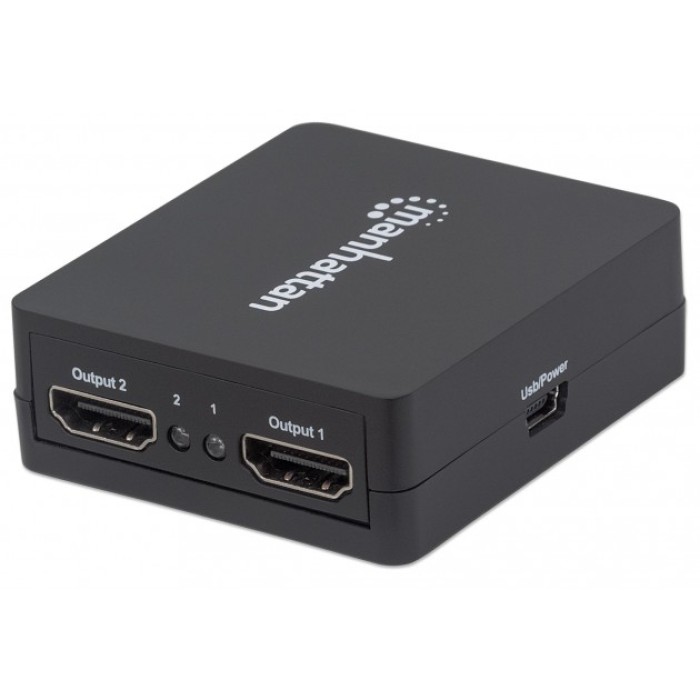

Two HDMI female, 19-pin (output)

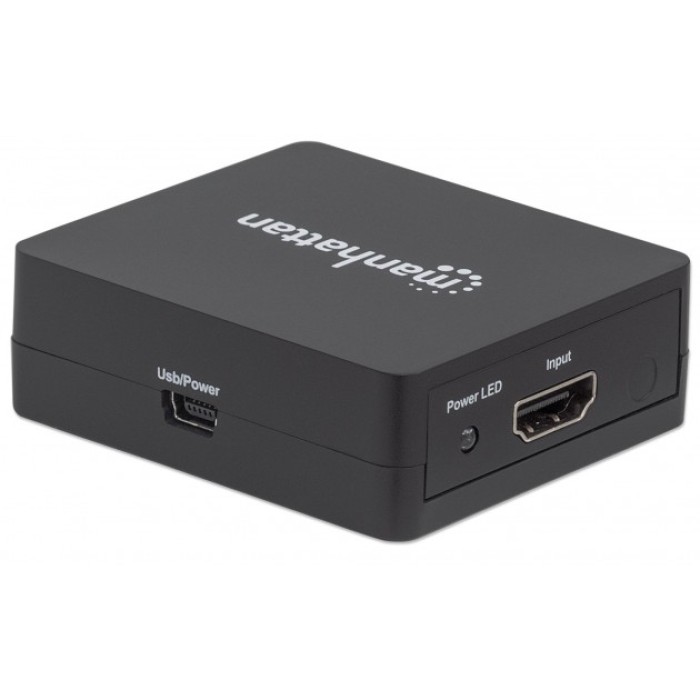

One USB Mini-B female, 5-pin (input) Input

Signal Input/Output

Input video signal: 0.5 – 1.0 V p-p

Input DDC signal: 5 V p-p (TTL)

Maximum single-link range: 2.25 Gbps, 1920x1200, 1080p

Output video: HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0

Frequency: 2.25 Gbps / 225 MHz

Video Resolutions

DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

The set contents

1x  HDMI Splitter

1x USB power cable

1x User Manual
