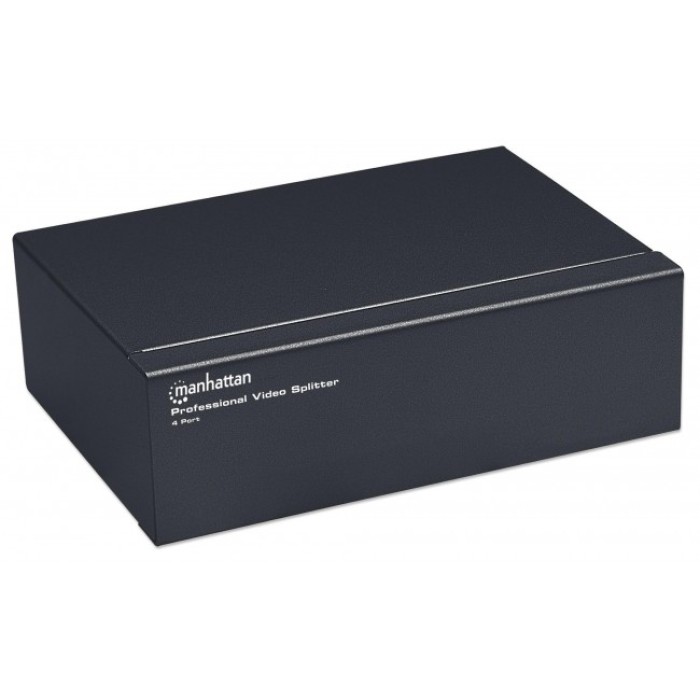

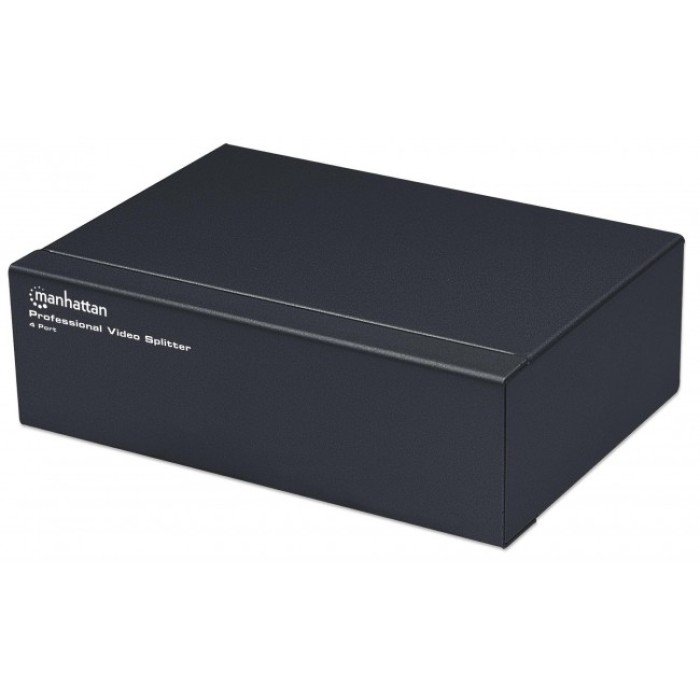

Manhattan IDATA IVIEW-MS4 - 4-way VGA Video Splitter

Manhattan IDATA IVIEW-MS4

4-way VGA Video Splitter

Manhattan IDATA IVIEW-MS4 is a professional 4 way VGA Video splitter monitor which it is allows you to split the audio / video signal from a PC to monitors, projectors or other VGA, SVGA and MultiSync equipment.

Feautures of vga splitter

• Duplicate a single VGA signal up to 4 VGA outputs.
• It supports bandwidth up to 350 MHz and resolutions up to 1920 x 1680 with effective transmission distance up to 65 m.
• Cascade up to three levels to expand signal distribution to multiple monitors.
• The power save function activates automatically until the VGA signal is restored.
• Simple to install - no configuration required.
• Signal bandwidth: 350 MHz


Features

General

• LED indicator: On (green)
• Cable length, maximum: 65 m
• Connection: input (1) HD15 male; output, (4) HD15 female
• Power supply: 9 V AC, 300 mA

Certifications:

• FCC
• THERE IS
• ISO9002

Signal

• Signal bandwidth: 350 MHz
• Signal type: VGA, SVGA, multi-sync
• Input voltage, minimum: 0.5 V pp
• Input voltage, maximum: 1.0 V pp
• I / O impedance: 75 Ohms
• Distance between computer and video splitter: 7.5 m
• Distance between monitor splitter and monitor series: 65 mt

Resolution

• Resolution: 1920 x 1680
• Horizontal frequency: 30 - 120 KHz
• Vertical frequency: 40 - 120 Hz

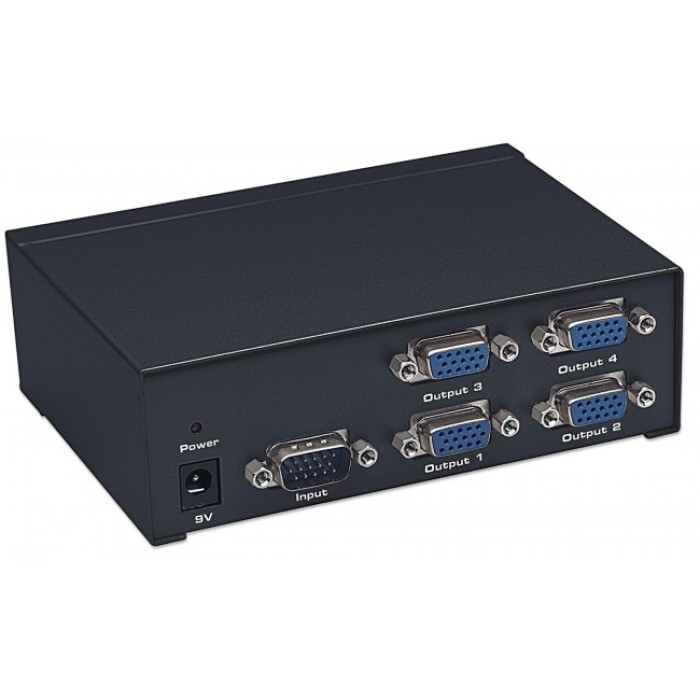

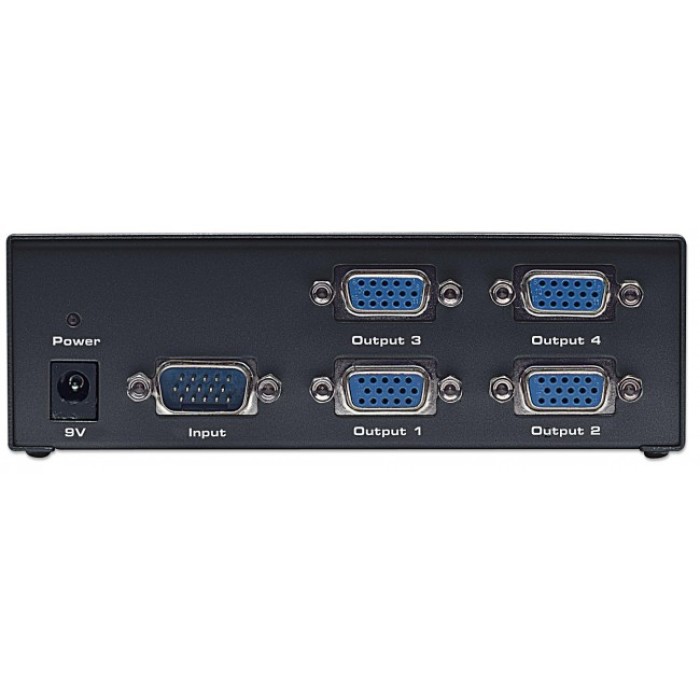

Ports

• 1x HD15 male
• 4x HD15 female
• 1x port for 9 V, 1000 mA power supply

Physical information

• Housing: metal
• Dimensions: 133 x 94 x 42mm
• Weight: 396 g

The set contents

1x Techly IDATA IVIEW-MS4 - Professional 4-way VGA Video Splitter

1x Power supply

1x User Manual
