Manhattan IDATA EXT-E704K60 - HDMI Extender 4K 70m

Manhattan IDATA EXT-E704K60

HDMI Extender 4K 70m

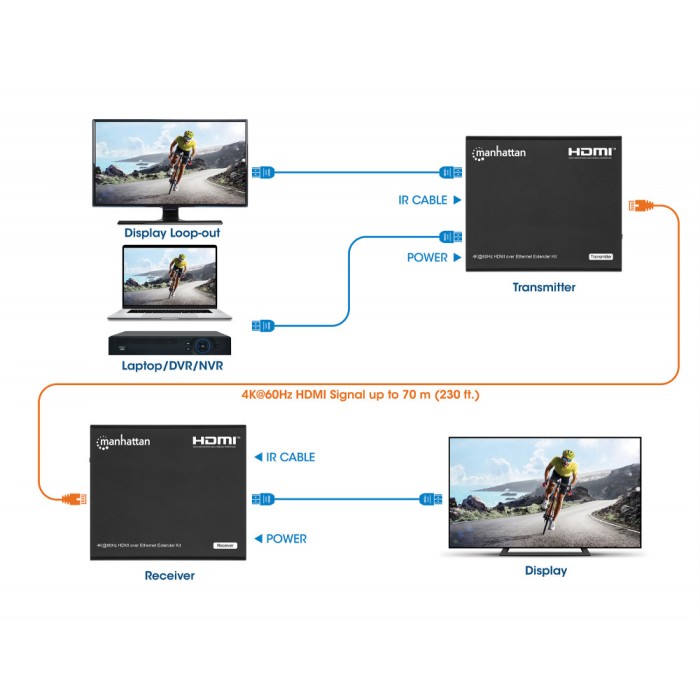

The HDMI Over Ethernet Extender Kit allows HDMI signal extension up to 70 meters via a single Cat.6/6A/7 network cable, supporting resolution up to 4K@60Hz and bandwidth up to 18Gbps. Thanks to PoC (Power over Cable) technology, the transmitter and receiver can be powered by a single power supply, offering easy and practical installation.

It supports HDR, 4:4:4 chroma subsampling, 36-bit Deep Color, 3D video, HDCP 2.3 and EDID bypass, while it has an additional HDMI output on the transmitter for connecting a local display. An IR transmitter and receiver are also included for remote control of the HDMI source.

Features

Main features

Extend HDMI up to 70m via a Cat.6 cable or higher.

Support 4K@60Hz (3840×2160) for high image quality.

18Gbps bandwidth / 600MHz with support for 4:4:4 chroma subsampling.

PoC (Power over Cable) for powering both transmitter and receiver via a single power supply.

HDR for higher contrast and more vivid colors.

HDCP 2.3 with backward compatibility.

HDMI local output on the transmitter for connecting a second display near the source.

IR Blaster & Receiver for remote control of the HDMI source.

EDID and HDCP bypass for easier compatibility between devices.

Support 36-bit Deep Color (12 bits per channel).

Support 3D video.

Support DTS-HD Master Audio, Dolby TrueHD and LPCM 7.1.

Plug & Play, no need to install software.

Metal housing for durability and effective protection.

Mounting brackets included for wall or ceiling installation.

Gold-plated contacts for reliable and durable connection.

Compatibility

Suitable for TV, projector, monitor, notebook, PC, AV receiver, streaming box, Blu-ray player and game consoles, such as PlayStation 4/5 and Xbox One/Series S/Series X.

Supported resolutions: 480p, 576i, 720p, 1080i, 1080p, 4K@30Hz and 4K@60Hz.

Technical specifications

Maximum resolution: 4K@60Hz

Maximum distance: 70m

Transmission cable: Cat.6/6A/7

Bandwidth: 18Gbps / 600MHz

Chroma Subsampling: 4:4:4

HDR: Yes

HDCP: 2.3

Deep Color: 36-bit

3D: Yes

PoC: Yes

EDID Bypass: Yes

HDCP Bypass: Yes

IR: Yes

Material: Metal

Dimensions: 100 × 88 × 23 mm

Weight: 400 g

Color: Black

Operating temperature: 0°C to 70°C

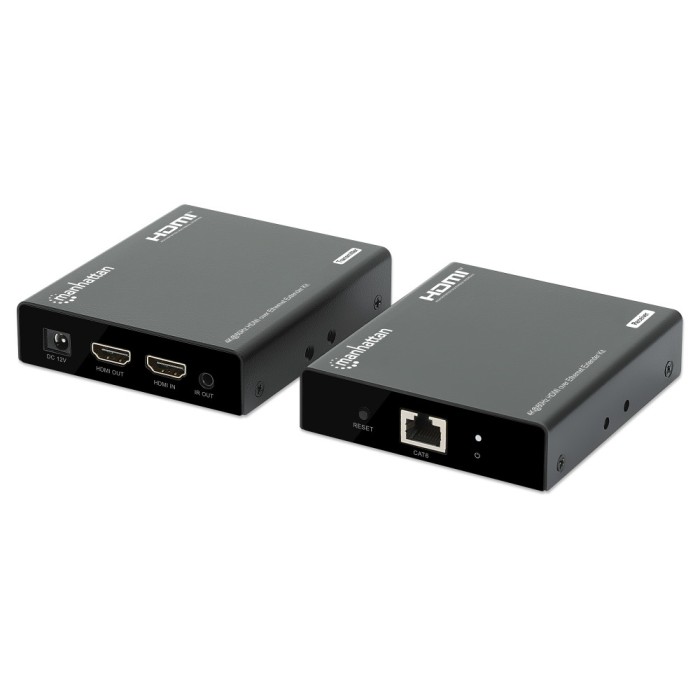

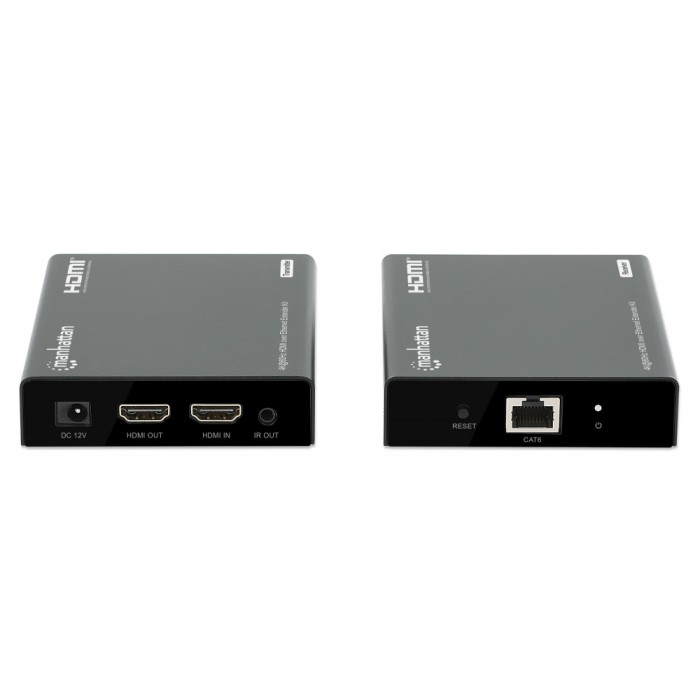

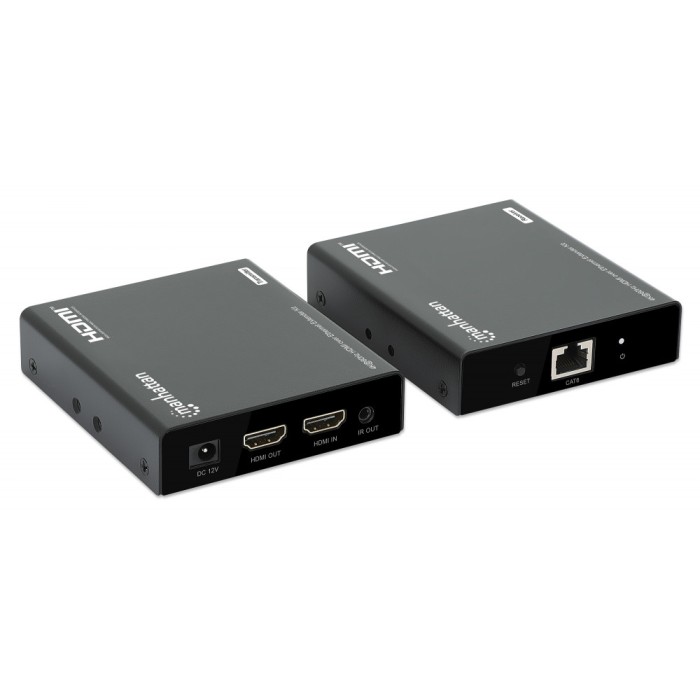

Connections

Transmitter (TX):

• 2× HDMI 19-pin Female, of which 1 for local monitor
• 1× RJ45 Female
• 1× DC 12V
• 1× 3.5mm IR

Receiver (RX):

• 1× HDMI 19-pin Female
• 1× RJ45 Female
• 1× 3.5mm IR
• 1× DC 12V

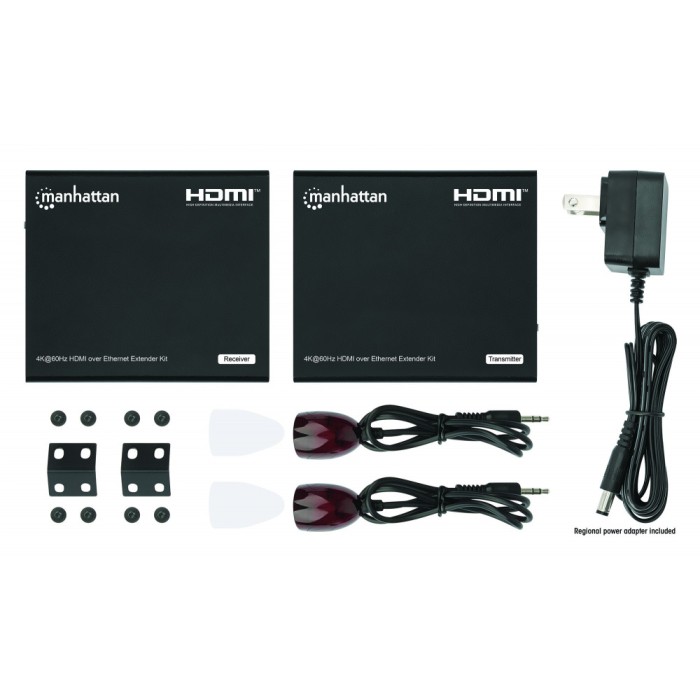

The set contents

1x HDMI Transmitter

1x HDMI Receiver

1x DC 12V Power Supply

1x IR Blaster

1x IR Receiver

Mounting Brackets

User Manual
