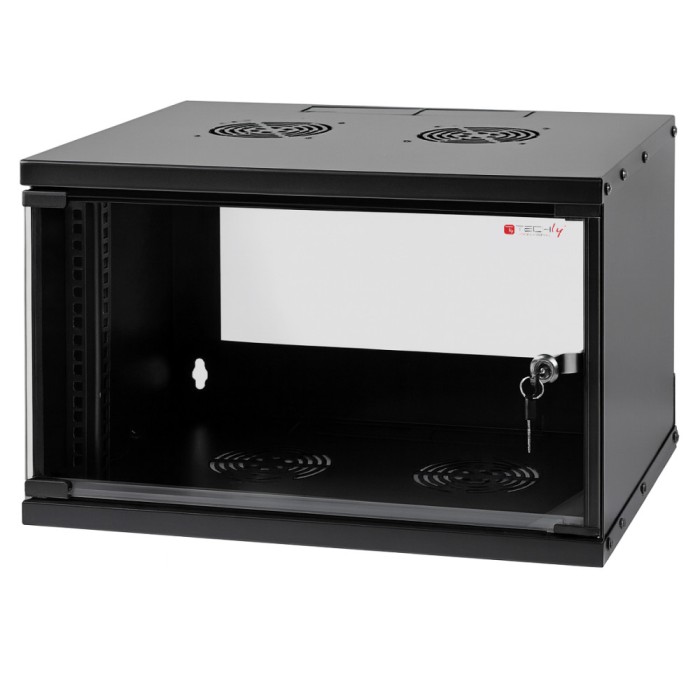

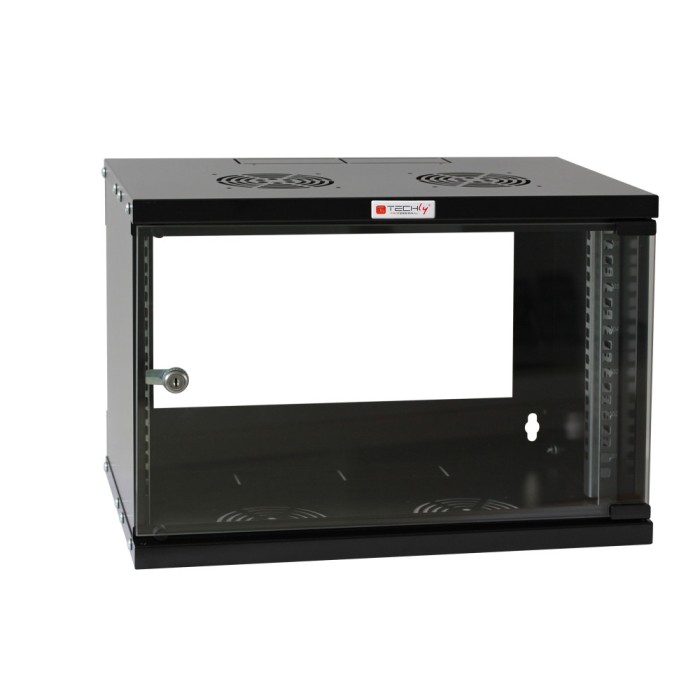

Techly I-CASE EL-1009B32 - Assembled Wall Rack 19" 9U 320mm Depth Black
Techly I-CASE EL-1009B32
Assembled Wall Rack 19" 9U 320mm Depth Black
19" wall-mount rack cabinet with 9U capacity, 320 mm depth, and a black finish. It features a 5 mm tempered glass door with a lock, removable side panels, and adjustable front mounting rails. It provides an organized and secure installation for network and telecommunications equipment, with a static load capacity of up to 50 kg.
Feautures of Wall Rack 19" 6U
- 19" wall-mount rack cabinet
- Capacity: 9U
- Depth: 320 mm
- Color: Black (RAL 9004)
- Door: 5 mm thick tempered glass
- Door features: Removable and reversible
- Front door lock
- Removable side panels
- Adjustable 19" front mounting rails
- Ventilation openings
- Static load capacity: Up to 50 kg
- Protection rating: IP20
- Includes assembly and grounding kit

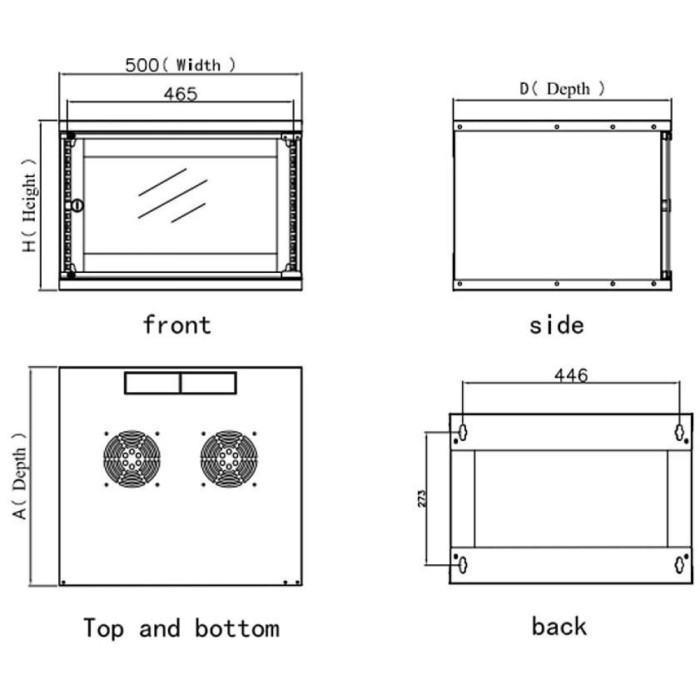

- Dimensions (H × W × D): 485 × 500 × 320 mm
- Usable depth: 230 mm
- Locking mechanism: Key-operated
- Side panels: Removable
The set contents
1x Techly I-CASE EL-1009B32 - Assembled Wall Rack 19" 9U 320mm Depth Black
10x caged nuts
10x screws for assembly
1x Torx key
1x Assembly instructions
