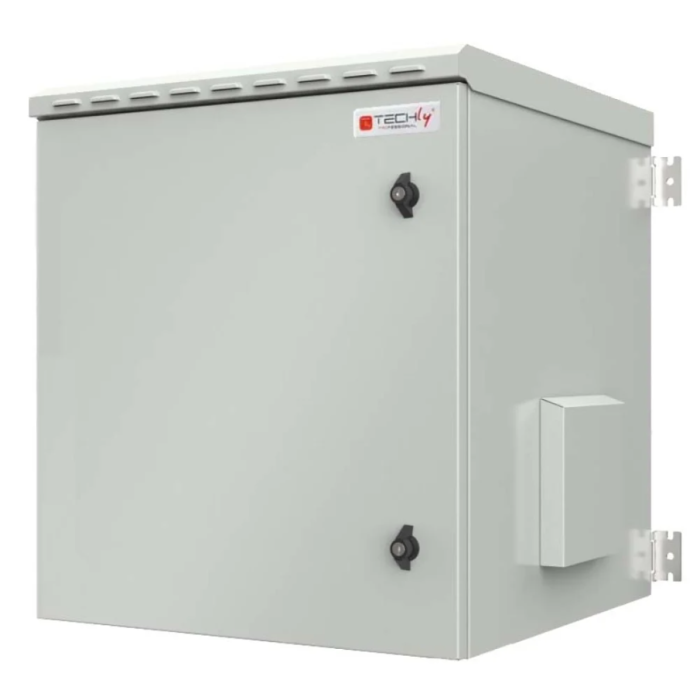

Techly I-CASE IP55-960 - Wall Rack 19" Case 9U 600mm Depth
Techly I-CASE IP55-960
Wall Rack 19" Case 9U 600mm Depth
Techly I-CASE IP55-960 - Wall Rack 19" Case 9U is ideal for creating small corporate networks or for home applications. It is a single 9-unit wall cabinet, removable, reversible opening angle 180°. It also has a quarter locking system turn.
Feautures of Wall Rack 19" 9U
- Fixed blind rear panel
- Fixed blind side panels
- Pairs of numbered 19 "front and back uprights
- Color: RAL 7035 (gray)
- Dimensions: 543x600x600 mm (HxWxD)
Features
General
- Welded monobloc structure, IP55 protection degree, polyurethane sealing on the doors
- Sheet metal door with reinforcement frame and quarter turn locking system
- It is mechanically lockable by means of 2 wing screws inside the hinged roof system, allowing easy intervention from above on the fan modules
- With the help of the protected metal filter system on the right and left of the cabinet, it allows passive ventilation and the exhaust of hot air through the slats on the roof
- By means of wall mounting tabs, the cabinet can be easily mounted to the wall
- Thanks to a PG48 IP cable gland, 2 PG21 IP cable glands and 3 blind PVC flanges with a diameter of 28 mm in the lower part of the cabinet, it allows consistent entry of cables from below
Static load: 150 kg
Protection degree: IP55
The set contents
1x Techly I-CASE IP55-960 - Wall Rack 19" Case 9U 600mm Depth
2x pairs of 19" struts
