Fracarro CIR700-3.6

Fracarro CIR700-3.6

Camera

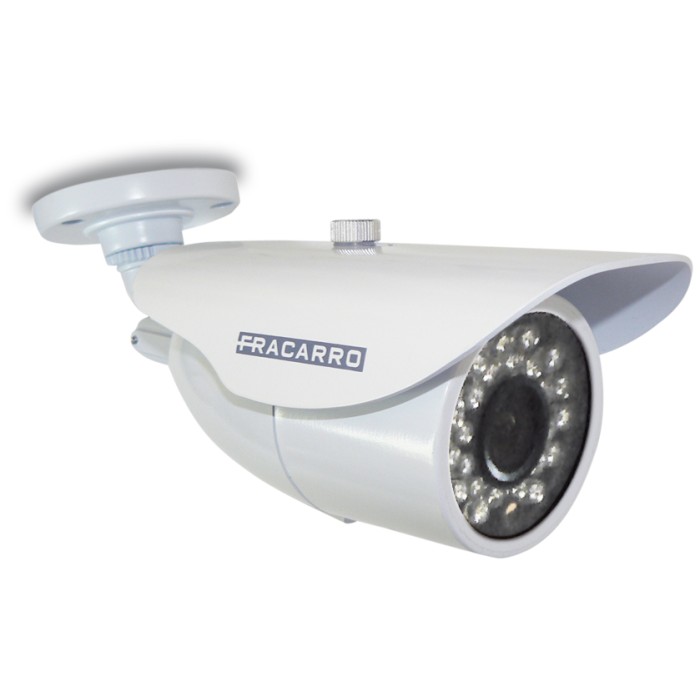

The Fracarro CIR700-3.6 is a camera all-in-one with a multifocal lens. 700 lines TV * 1024x596 pixels

Feautures

AES (Automatic Electronic Shutter): 100.000 sec

AGC, (Auto Gain Control): On

Auto iris: -

AWB, (auto white balance): On(2500-9500Κ)

BLC (backlight compensation Auto): 1/50-1

Sensor: CCD 1/3" Sony Supr HAD WITH Sony EFFIO processor

Horizontal resolution: 700 lines TV (1024 x 596 pixels)

Correction gamma: -

Minimum illumination: @F 2: 0.3 lux / 0 lux with LED lit

Signal / noise ratio (S / N): >48dB (AGC Off)

Video output: Composite 1 Vpp, 75Ω to BNC * PAL

Synchronization: Internal / Line Lock (only with power supply AC)

Power supply: 12V +-10%

Power consumption: 100mA IR LED Off / 350mA IR LED On

Dimensions: 150,5 x 88 mm

Weight: 490 g

Lens adjustment: -

DSP (digital processor): -

Illumination: 24 infrared LED beam type double
Lighting control: Light sensor CDS late 3,5-10 lux
Coverage lighting: 10-15 m (interior) / 5-10 m (outdoors)
Lens: 3.6mm @ F1.5
Protection: IP66
