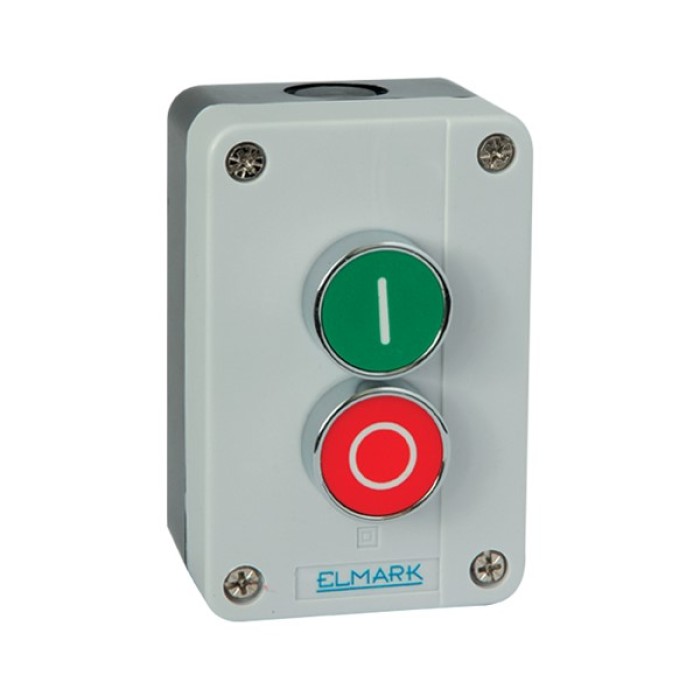

EL- Push Two Button Switch type EL1-BP213/1NO/1NC/IP65/Green-Red
EL- Push Two Button Switch type
EL1-BP213/1NO/1NC/IP65/Green-Red
EL- Push Two Button Switch type EL1-BP213/1NO/1NC/IP65/Green-Red
Feautures
- Switch Type : Push button
- Position : Spring return push button.
- Contact Type : 1NO, 1NC
- Rated Current at 400v : 6a
- Button color: Green-Red
- Color : Black-Grey
- Insulation voltage: 660V, 50/60Hz
- Impulse voltage with stand: 6000V
- Rated current: 6А (230V АС); 0.3А (230V DC)
- IP code: IP65
- Mechanical compression strength: at closing: 20N , at opening: 8N
- Operating temperature: -20°С - +70°С
- Humidity: 35-85%RH
- Mounting: To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: Ø22.5mm
- Dimensions : (cm) L:10.4 x H:6.8 x W:5
Package contents
1 x EL- Push Two Button Switch type EL1-BP213/1NO/1NC/IP65/Green-Red
RP Industrial Female Plug 3x32A IP44
Industrial Female Plug 32A/2P+E/6h/200-250V/50Hz/60HzXENIA products is a range of 16A and 32A mobile industrial plugs with technopolymer monobloc body, screw terminals and external cable clamp.FeaturesProduct type : Industrial PlugCommercial Pro..
RP Industrial Female Plug 3x16A IP44
Industrial Female Plug 16A/2P+E/6h/200-250V/50Hz/60HzXENIA products is a range of 16A and 32A mobile industrial plugs with technopolymer monobloc body, screw terminals and external cable clamp.FeaturesProduct type : Industrial PlugCommercial Pro..
EL- Rotary Switch 0-1 EL1-B134/1NO/Ip44
EL- Rotary Switch 0-1 EL1-B134/1NO/Ip44EL- Switch 0-1 EL1-B134/1NO/Ip44. On-Off Switch.Feautures Switch Type : RotaryPosition : 0-1Contact Type : 1NORated Current at 400v : 6aColor : Black-GreyDimensions : (cm) L:6.8 x H:6.8 x W:5Package co..
EL- Push Button Switch type EL1-B102/1NO/Ip44/Green
EL- Push Button Switch type EL1-B102/1NO/Ip44/GreenEL- Push Button Switch type EL1-B102/1NO/Ip44/GreenFeautures Switch Type : Push buttonPosition : Spring return push button.Contact Type : 1NORated Current at 400v : 6aColor : Black-Grey-GreenDim..
EL- Emergency Button Switch type Mushroom EL1-B174/1NC/Ip44/Red
EL- Emergency Button Switch type Mushroom EL1-B174/1NC/Ip44/RedEmergency button with head “mushroom” type Ø40. Release through turningFeautures Switch Type : Emergency ButtonPosition : Release through turningContact Type : 1NCRated Current at 40..

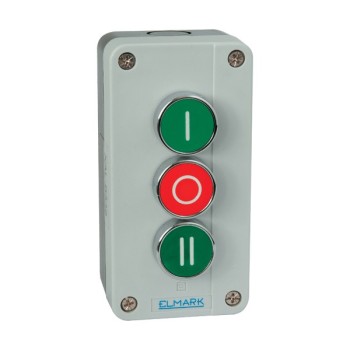

EL- Push Three Button Switch type EL1-BP339/1NO/1NC/1NO/IP65/Green-Red
