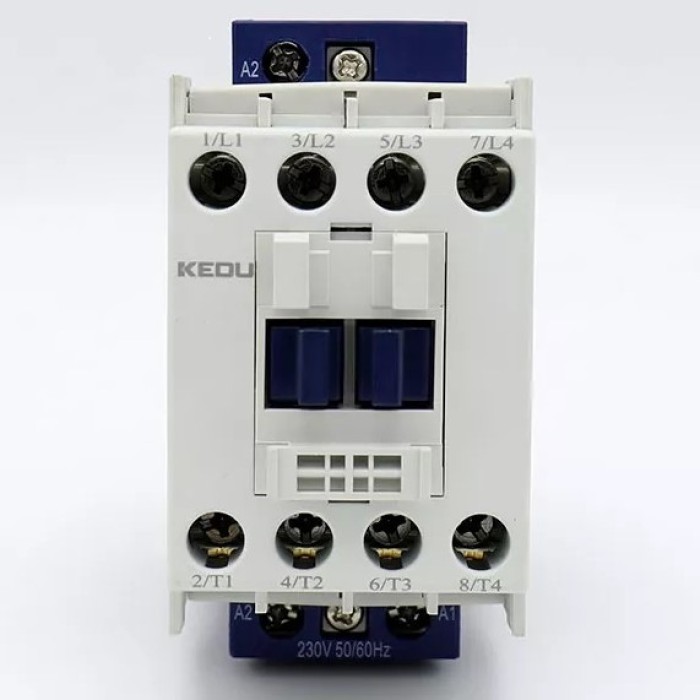

Relay Contactor CKDC2A37/P7 18kW 40A 3P 230VAC
Relay Contactor
CKDC2A37/P7 18kW 40A 3P 230VAC
The CKDC2 Series contactors is applied to 50 Hz(60Hz) AC up to 690V, and DC up to 440vdc. In the AC3 case, the circuit with rated voltage 380V and current 85A can be used in remote on-o circuit and frequentlystart and control motor. The contactors can be loaded with auxiliary contact or air delay contact convinietly and perform the functions of AC and DC coil control, electric and pneumatic timing module,reversible coil terminal (power terminal or load terminal), space-saving oil mounted control modules. The contactors combined with the thermal overload relay can be used as electromagnetic starter to protect the overload circuit.
Features
- Contacts : 3NO
- Product: motor protection power relay
- Current amperage : 40A
- Use category: AC 3
- Coil voltage : 230VAC 50/60Hz
- Cable cross-section depending on the cable type: 1-10 mm²
- Tightening force: 1.5 - 2.5 Nm
The set contents
1x Relay Contactor CKDC2A37/P7 18kW 40A 3P 230VAC
