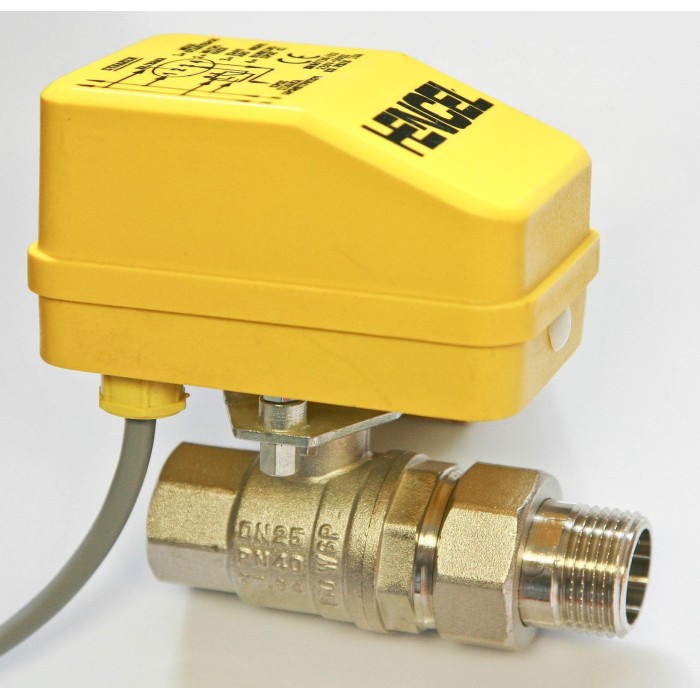

Electrovalve with total flow 1'' Caldo
Electrovalve
With total flow 1'' Caldo
Electrovalve with a long life, with absolute precision and with an indication (led) for the visual control of operation or not.
*** The picture is for reference only.
Features
- As an electric valve for central heating systems or not.
- In installations of hydraulic systems that should not have hydraulic shock effects.
- More generally, like an On-Off solenoid valve with the additional ability to give a command when it is open.
- European standardization standards: ΕΝ60730-1 & ΕΝ60730-2-8.
- Color : Grey
Technical characteristics of the engine:
Operating voltage: 230 VAC
Motor power: 3.5 Watt
Relay contact: 12 A
Protection: IPX40
Torque: NM3.2
Operating time: Sec 105/90o
Technical Characteristics of the Trunk:
The body is made of forged brass ball diamond-coated as well as sealing seats of PTF (Teflon) and (O'Ring).
They have a double O'Ring on the shaft.
The test pressure is done at 15 Bar.
The operating pressure is around 3-4 Bar.
The operating temperature is from -20 to +80 degrees C.
Electrovalve connection:
Νο1 cable, we connect the neutral.
No2 cable, we connect the phase.
No3 cable, we connect the command - phase from the thermistor.
No4 cable, we connect the command – phase to the autonomy panel.
Yellow cable, we connect the ground.
The set contents
1x Electrovalve with total flow 1'' Caldo

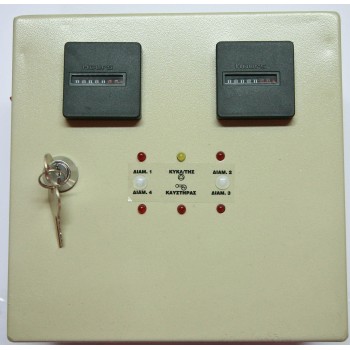

Viomtron Autonomy Panel 2 Compartment with Diodes and Hour Counters
Viomtron Autonomy Panel2 Compartment with Diodes and Hour Counters Viomtron's Autonomy Panel is metal, painted with double electrostatic paint and meets all ELOT standards. It has features that other autonomy panels have as extras. Its main fea..

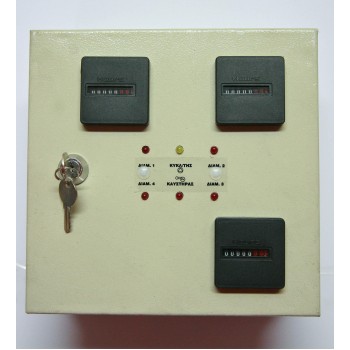

Viomtron Autonomy Panel 3 Compartment with Relay and Hour Counters
Viomtron Autonomy Panel3 Compartment with Relay and Hour Counters Viomtron's Autonomy Panel is metal, painted with double electrostatic paint and meets all ELOT standards. It has features that other autonomy panels have as extras. Its main feat..

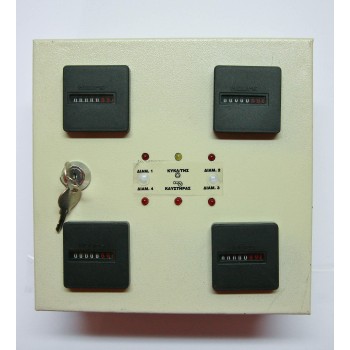

Viomtron Autonomy Panel 4 Compartment with Relay and Hour Counters
