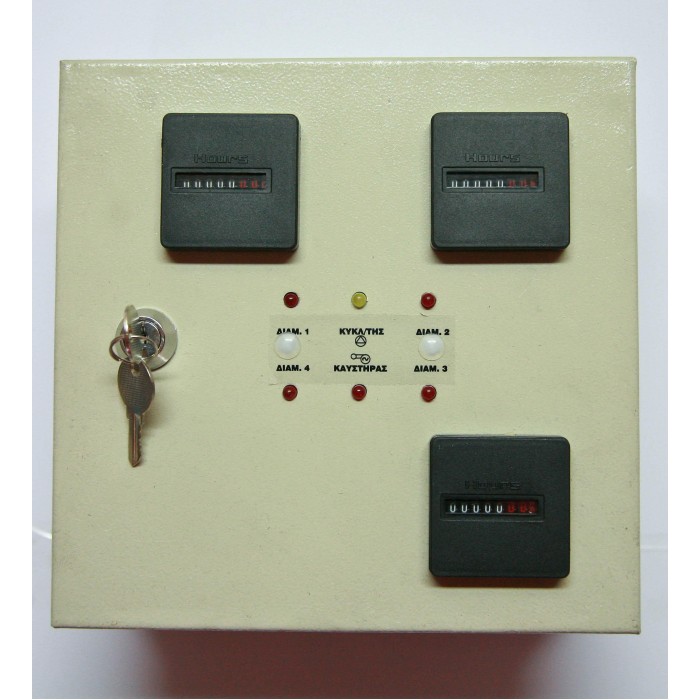

Viomtron Autonomy Panel 3 Compartment with Relay and Hour Counters
Viomtron Autonomy Panel
3 Compartment with Relay and Hour Counters
Viomtron's Autonomy Panel is metal, painted with double electrostatic paint and meets all ELOT standards. It has features that other autonomy panels have as extras. Its main feature is that it is manufactured in Greece.
Features
- It consists of a 1mm thick metal box
- It has a security lock for impossible access to any abnormal operation
- It has a built-in 2x16A switch and a 16A automatic fuse to supply the Boiler Room
- The last solenoid valve remains open for the exploitation of hot water by the last user who will command the thermostat to close the burner (Expansion)
- Test Burner On-Off switch to start the burner manually
- IP 42 protection
- Operating voltage 230 VAC / 50 Hz

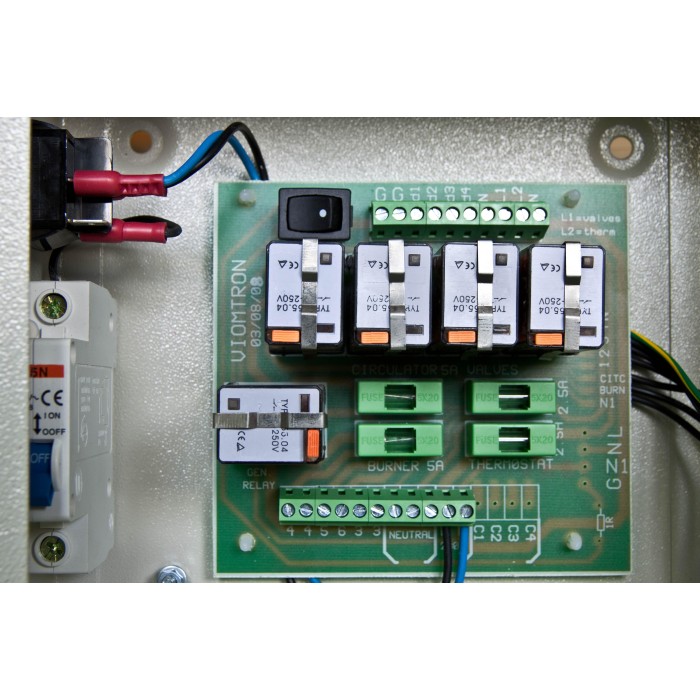

- Four contact relays (5A each)
- Compliance marking: CE LVD 73/23 EEC
- European standardization standards: EN 60730-2-8(2001).
The set contents
1x Viomtron Autonomy Panel 3 Compartment with Relay and Hour Counters
