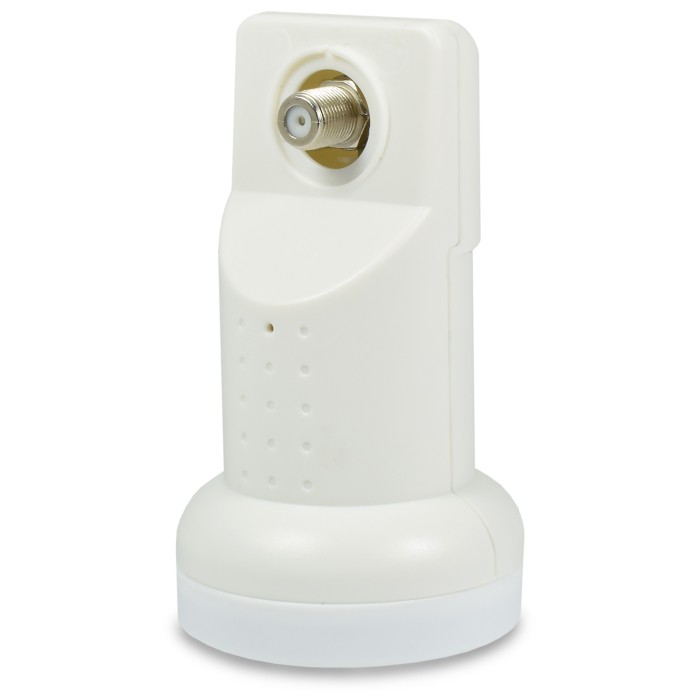

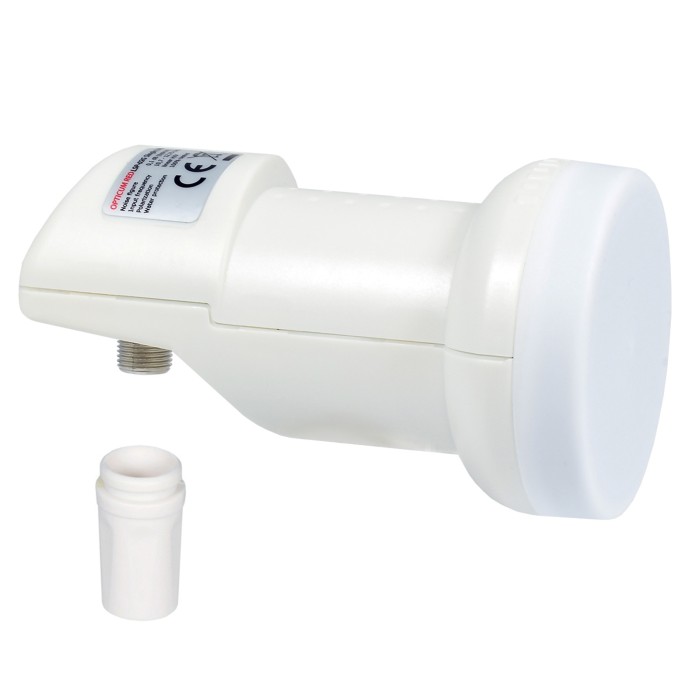

Opticum LSP-02G KON0063 - Single Universal LNB

Opticum LSP-02G KON0063

Single Universal LNB

With Opticum LSP-02G you can receive digital satellite signals in excellent HD high-quality. With its compact housing and extra light weight weather and wind are no disturbing factors. Low noise figures and the particularly robust and high performing technology make LSP-02G a reliable and essential part of modern TV equipment.

Product overview

• High performance technology
• Excellent reception of digital HD signals
• Ideal for system expandability
• Robust and weather resistant

Features

Outputs: 1

Input Frequency Range: Low: 10.7 ~ 11.7 GHz, High: 11.7 ~ 12.75 GHz

Output Frequency Range: Low: 950 ~ 1950 MHz, High: 1100 ~ 2150 MHz

F / D ratio: 0.5 ~ 0.7

Crospolarization isolation (dB): 20

Noise figure (dB): 0.1 (typical)

Conversion gain (dB): 58 (typical)

Current consumption (mA): 110 Max

Operating voltage vertical polarization (V): 11.5-14

Operating voltage horizontal polarization (V): 16-19

Operation Temperature: -40°C ~ + 60°C

Output connector: 75 Ohm F type

The set contents

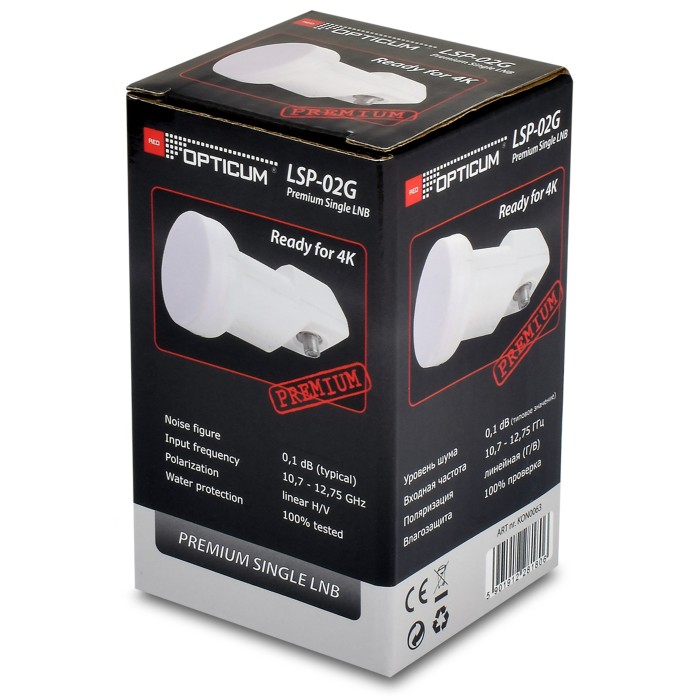

1x Opticum LSP-02G KON0063 - Single Universal LNB
