Opticum OMS 9/8 PRO-TR MUL0113 - Multiswitch 9 inputs / 8 outputs

Opticum OMS 9/8 PRO-TR MUL0113

Multiswitch 9 inputs / 8 outputs

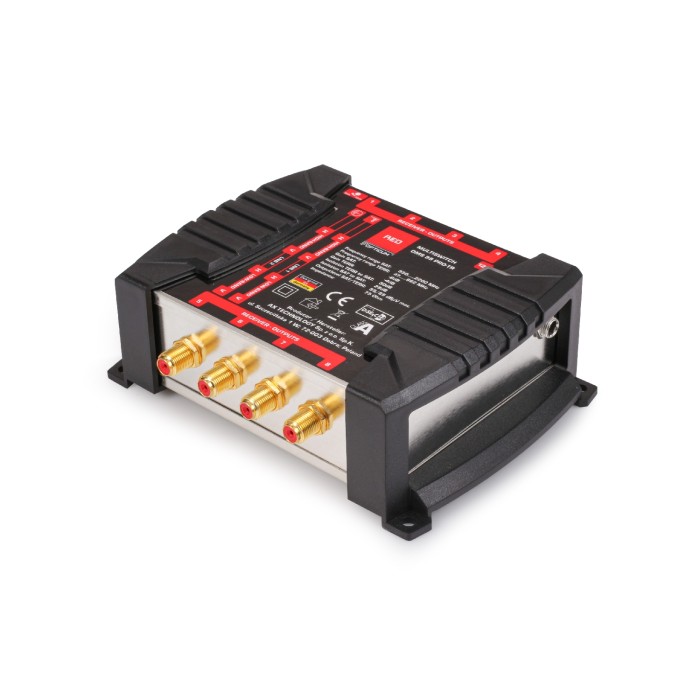

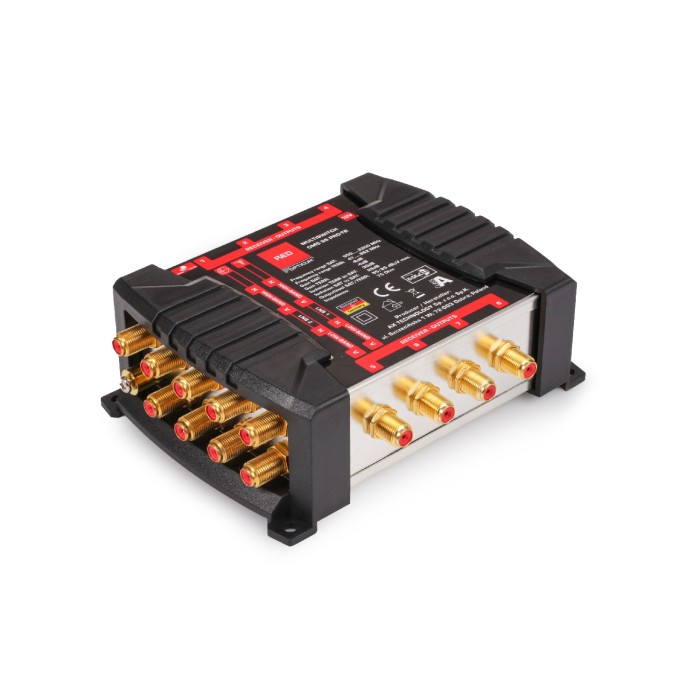

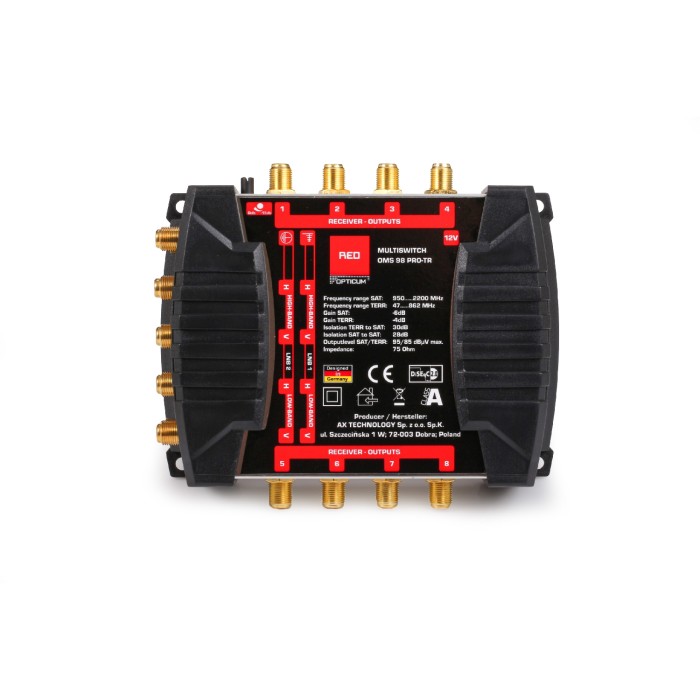

Opticum OMS 9/8 PRO-TR MUL0113 is a multiswitch with 9 (8 satellite + 1 terestrial) inputs and 8 outputs. Suitable for distribution of 2 satellites in 8 independent receivers (or autonomous sockets TV-SAT). Terrestrial signal input. Supplied with power adapter.

Featutrs of Multiswitch 9 inputs / 8 outputs

• Design good for indoor usage
• 8 satellite IF+1 Terrestrial input for 8 satellite receivers
• Built in Amplifiers
• Ideal for middle or large SMATV systems

Features

Frequency range: from 47 - 2200 MHz

Inputs: 8 SAT + 1 Terrestrial

Output level: 85 dBuV Terr.

Output level: 95 dBuV SAT

Terrestrial: active and adjustable (0 … -15 dB)

Ground connection

Gold-plated contacts

External power supply

Compatible LNBs: 2x Quattro LNB

SAT/IF inputs: 8 (F)

Terrestrial TV input: 1 (F)

Subscriber outputs: 8 (F)

Terrestrial signal amplifier (47–862 MHz): Yes, adjustable 0 to -15 dB

LNB/Polarity selection: 18V/22kHz, 13V/22kHz, 18V, 13V, DiSEqC 2.0

SAT/IF frequency range: 950–2200 MHz

Terrestrial frequency range: 47–862 MHz

SAT insertion loss @ 950 MHz: -1 dB

SAT insertion loss @ 2150 MHz: 7 dB

Terrestrial loss (Outputs 1–8): -2 dB

SAT maximum output level (IMA3): 95 dBμV

Terrestrial maximum output level: 80 dBμV

Return Loss (Inputs/Outputs): 10 dB / 8 dB

TERR–SAT isolation: 25 dB

SAT–SAT isolation: 25 dB

LNB compatibility: Quattro LNB only

Maximum receiver current: 50 mA

Maximum internal consumption: 60 mA

Maximum LNB supply current: 800 mA

Operating temperature: -20°C to +70°C

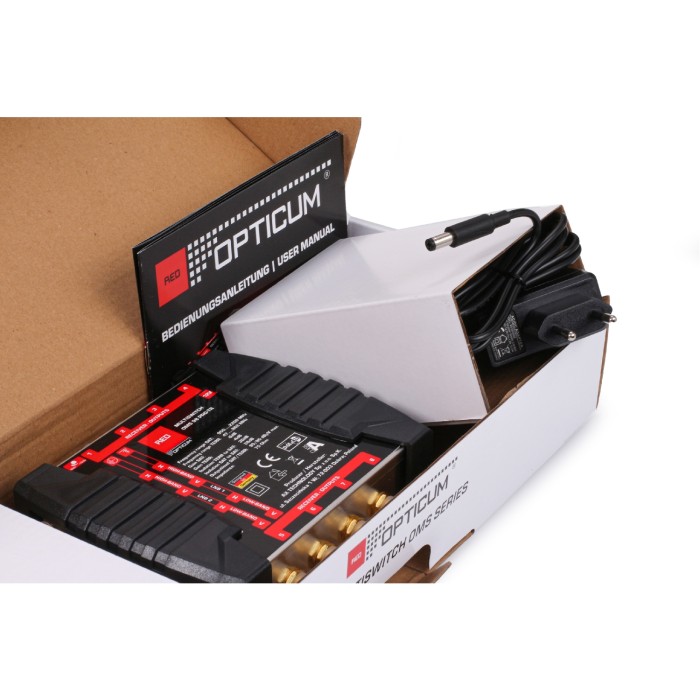

The set contents

1x Opticum OMS 9/8 PRO-TR MUL0113 - Multiswitch 9 inputs / 8 outputs

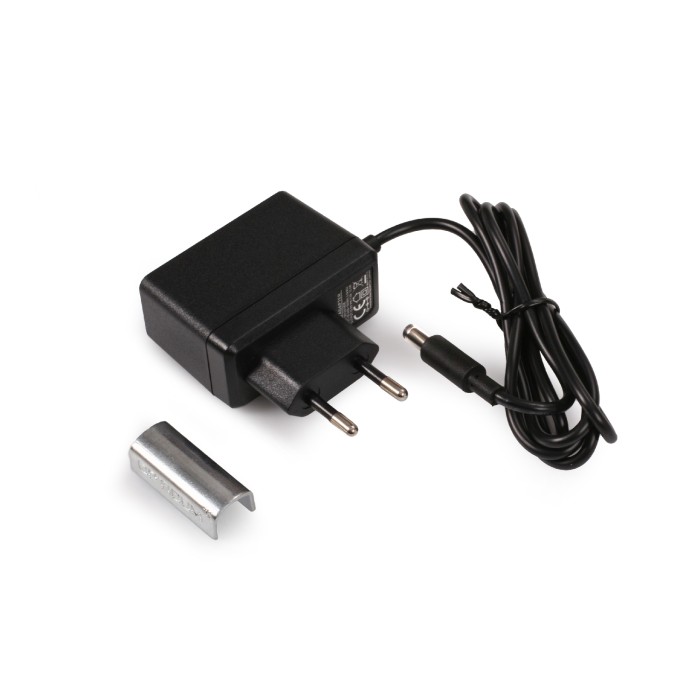

1x Power Adaptor

1x I nstruction Manual
