Opticum OMS 5/12 PRO-TRQ MUL0107 - Multiswitch 5-input / 12-output

Opticum OMS 5/12 PRO-TRQ MUL0107

Multiswitch  5-input / 12-output

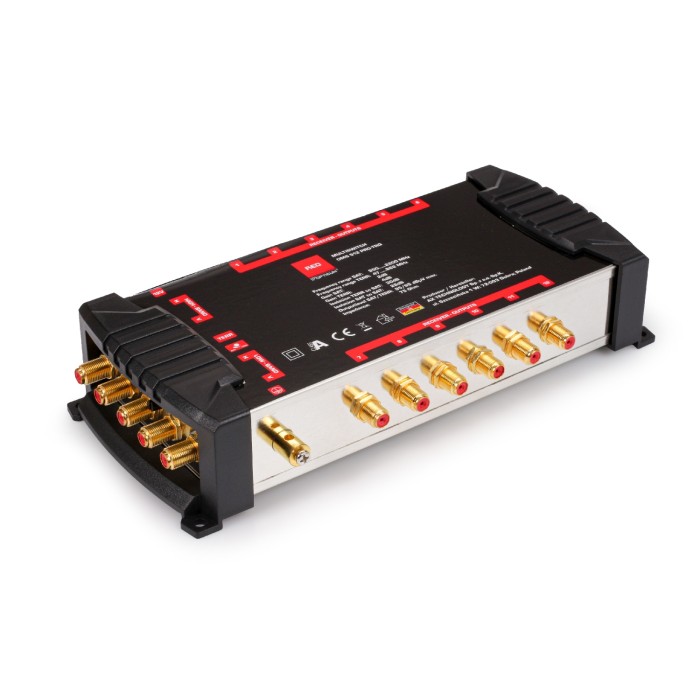

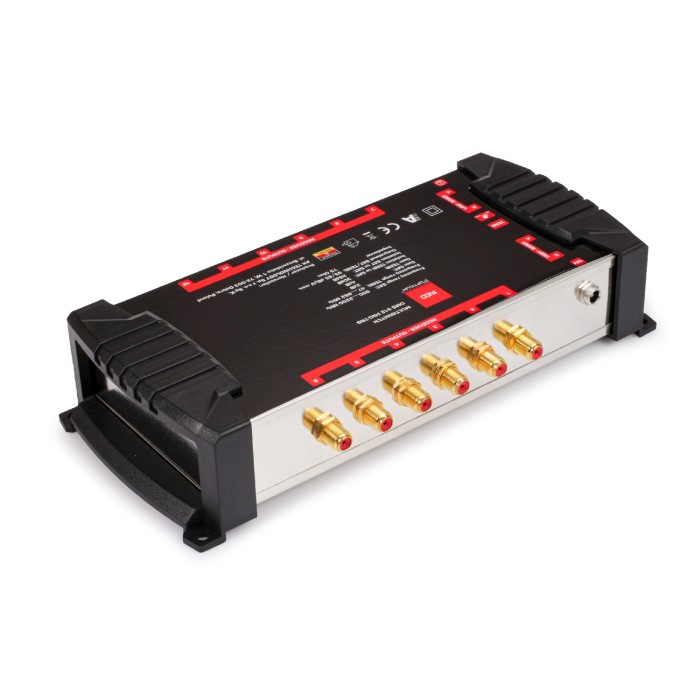

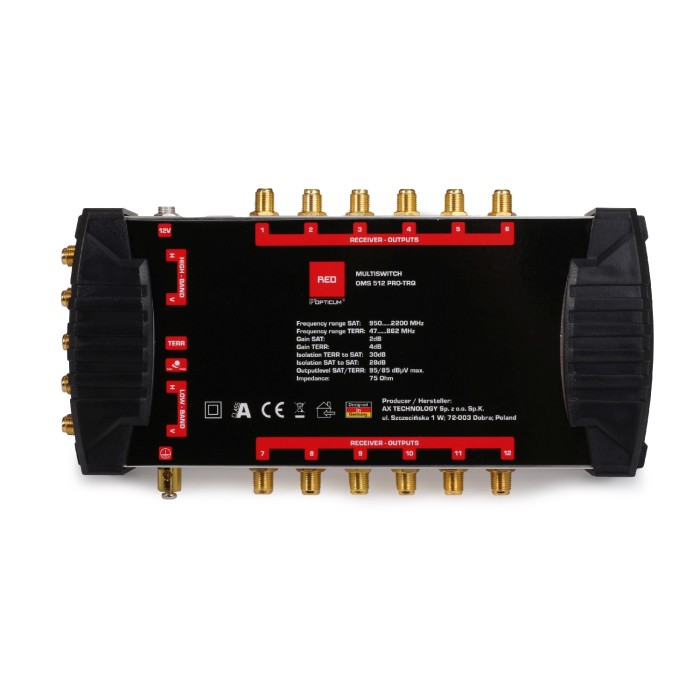

Opticum OMS 5/12 PRO-TRQ MUL0107 is a multiswitch with 5 (4 satellite + 1 terestrial) inputs and 12 outputs. Suitable for distributing satellite signal from 1 satellite to 12 independent receivers (or autonomous TV-SAT sockets). It has a DVB-T/T2 terrestrial signal input, is compatible with Quattro or Quad LNB, has gold-plated F connectors for minimal signal loss and comes with an external power supply. Supports HD, Full HD, 3D and 4K UHD broadcasts.

Featutrs of Multiswitch 5 inputs / 12 outputs

• Design good for indoor usage
• Built in Amplifiers
• Ideal for middle or large SMATV systems

Features

Frequency range: from 47 - 2200 MHz

Inputs: 4 SAT + 1 Terrestrial

Output level: 85 dBuV Terr.

Output level: 95 dBuV SAT

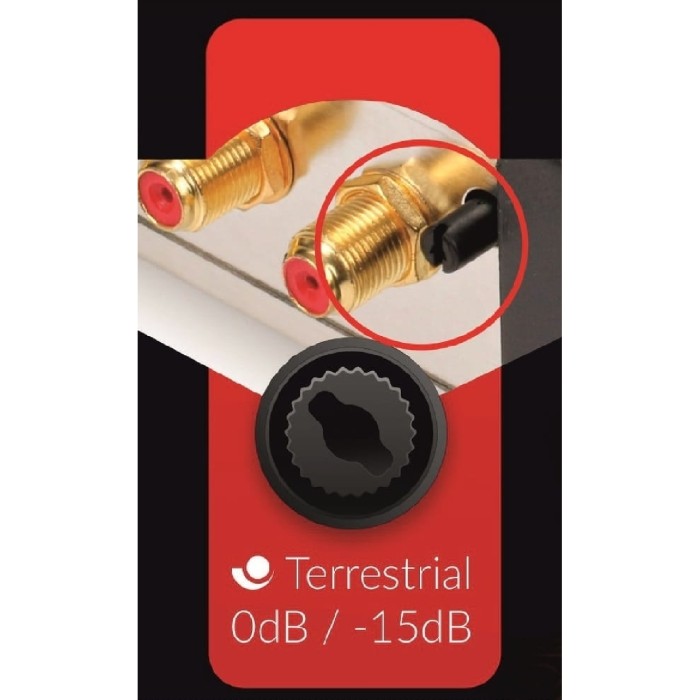

Terrestrial: active and adjustable (0 … -15 dB)

Mounting bases

Ground connection

Gold-plated contacts

External power supply

Compatible LNBs: 1 Quad or 1 Quattro LNB

SAT/IF inputs: 4 (F)

Terrestrial input (Terr.): 1 (F)

Subscriber outputs: 12 (F)

Built-in terrestrial amplifier: Yes

Terrestrial amplifier adjustment: 0 to -15 dB (Attenuator)

LNB / Polarity selection: 18V/22kHz, 13V/22kHz, 18V, 13V

SAT/IF frequency range: 950 – 2200 MHz

Terrestrial frequency range: 47 – 862 MHz

SAT insertion loss @ 950 MHz: -1 dB

SAT insertion loss @ 2150 MHz: 7 dB

Terrestrial loss (Outputs 1–8): 8 dB

Terrestrial loss (Outputs 9–16): 8 dB (only valid for the 12 available outputs up to the 12th)

Maximum SAT output level (IMA3): 95 dBμV

Maximum terrestrial output level: 85 dBμV

Return Loss (Inputs/Outputs): 10 dB / 8 dB

TERR ↔ SAT isolation: 25 dB

SAT ↔ SAT isolation: 25 dB

Supported LNBs: Quad or Quattro LNB

Maximum consumption from receiver: 45 mA

Internal consumption (from power supply): 45 mA

Maximum current to LNB: 800 mA

Operating temperature: -20°C to +70°C

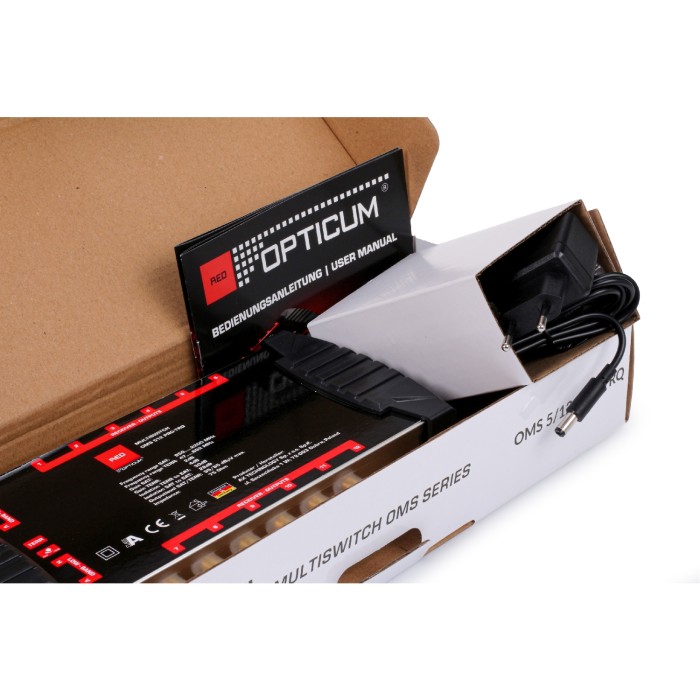

The set contents

1x Opticum OMS 5/12 PRO-TRQ MUL0107 - Multiswitch  5-input / 12-output

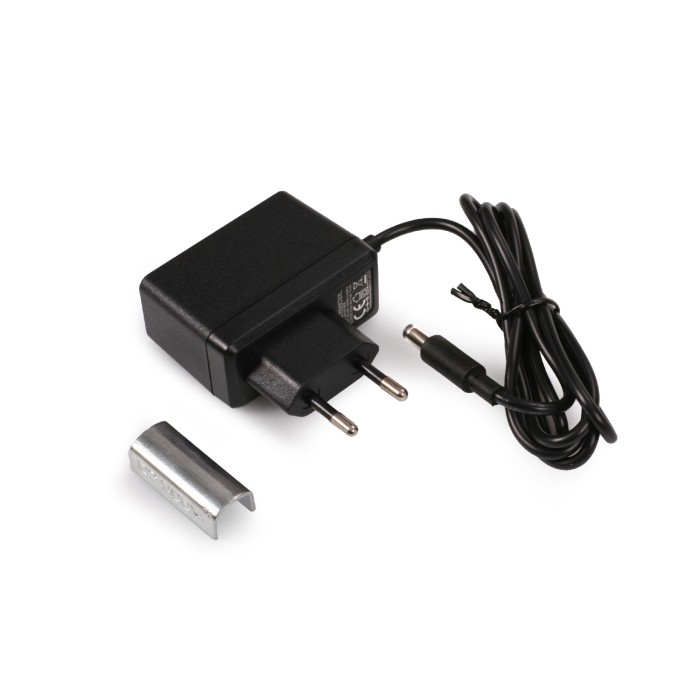

1x Power Adaptor

1x I nstruction Manual
