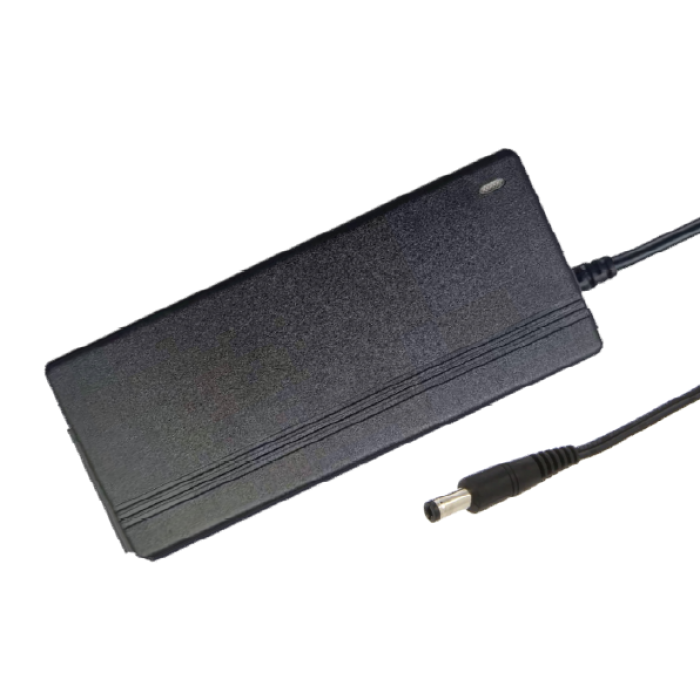

MPL Power Elektro POSC48125D-C14 Desktop Power Supply 48V/1.25A/60W

MPL Power Elektro POSC48125D-C14

Desktop Power Supply 48V/1.2A5/60W

MPL Power Elektro POSC48125D-C14, 48V/1.25A is a Desktop power supply with 1 output and rated power: 60W.

**It does not come with a power cable, you need the product with code 219091.

Feautures of Desktop Power Supply

• Universal AC input / Full range
• CEC level VI compliance
• IP20 Protection
• No load power consumption P < 0.075W
• Protections: Overload / Short circuit / Over Voltage
• Dc plug - 5.5x2.1mm

Features

Output

Rated Voltage: 48V

Rated Current: 1.25Α

Current Range: 0 ÷ 1.25A

Rated Power: 60W

Line Regulation: ± 5%

Load Regulation: ± 5%

Tolerance: ± 8%

Ripple & Noise (max.): 300mVP-P

Rise Time: Max 100ms / 230VAC at full load

Hold up Time (typ.): 3ms / 230VAC at full load

Input

Voltage Range: 90 ÷ 264VAC

Frequency Range: 47 ÷ 63Hz

Efiiciency (typ.): 87,78% - Input115/230Vac/Average (25%+50%+75%+100%)/4

AC Current (typ.): 1.5A / 230VAC

No load Power Consumption (max.): <0.21W

Protections

Over Current Protection: 1.38A-2.50A, Auto-recovery.

Short Circuit Type: hiccup mode, auto-recovery.

Over Voltage Type: auto-recovery.

Working Environment

Working Temperature: -5°C ÷ 40°C

Working Humidity: 5 ÷ 95% RH non-condensing

Storage Temperature and Humidity: -40°C ÷ 85°C, 5 ÷ 90% RH non-condensing

Safety and EMC Regulations

Safety Standards: Compliance to EN 62368

Withstand Voltage: IN/OUT: 1.5kVAC

Isolation Resistance: IN/OUT: 100MΩ/500VDC/25°C/70%

EMC Emission: Compliance to EN55032

EMC Immunity: Compliance to EN61000-4-2, -3, -4, -5

Harmonic Current: Compliance to EN61000-3-3; EN61000-3-2

Others

DC wire and plug Wire: 24AWG*2C, length = 1200mm Plug: 2.1/5.5, positive inside

Net Weight : 0,220kg

Dimensions : (L x W x H) 12,3 x 5,36 x 3,12 cm

Package dimensions: (LxWxH) 13.5 X 6.5 X 5 cm.

Packaging Weight: 0.450 Kg

The set contents

1x MPL Power Elektro POSC48125D-C14 Desktop Power Supply 48V/1.25A/60W
