Marmitek Surround Anywhere 221 - Digital Wireless Surround Sender

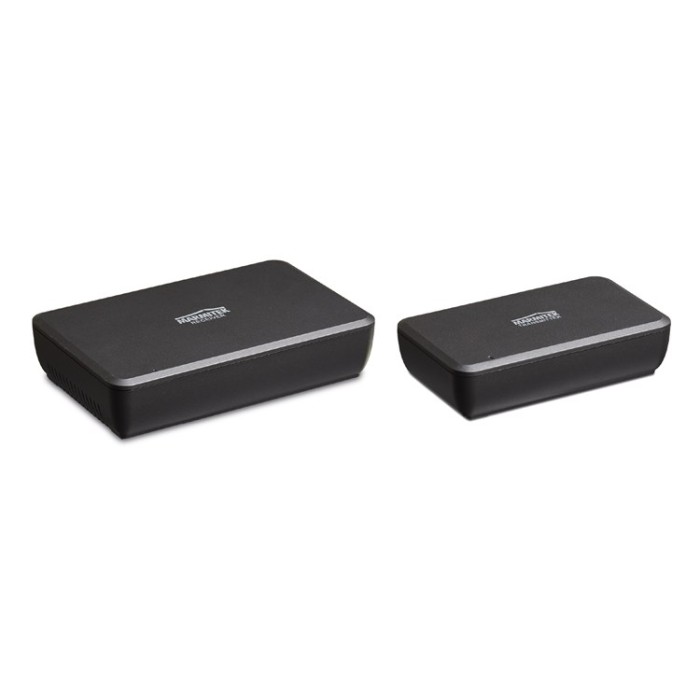

Marmitek Surround Anywhere 221

Digital wireless surround sender

The Marmitek Surround Anywhere 221 allows you to easily connect your rear surround speakers wirelessly to your surround set. The built-in amplifier in the receiver allows you to simply use your existing (passive) surround speakers. The uncompressed digital transfer creates a sound that surpasses CD quality, without any interference or delay. Since your surround is used to control the sound, everything is taken care of after installation.

Feautures digital wireless surround sender

• The uncompressed digital link provides better than CD-quality sound, without interference or delay.
• Improved 2.4GHz technology prevents interference with your existing Wi-Fi equipment, making them work perfectly side-by-side in the same area.
• Transmitter and receiver are paired (secure pairing), enabling you to use multiple sets in the same area (6 max).
• The receiver's built-in amplifier provides plenty of power for your rear speakers.
• Because of the direct connection to your surround set’s speaker output, the speaker volume will automatically correspond to the surround set’s volume.
• Volume control on the receiver ensures the right balance between front and rear speakers.

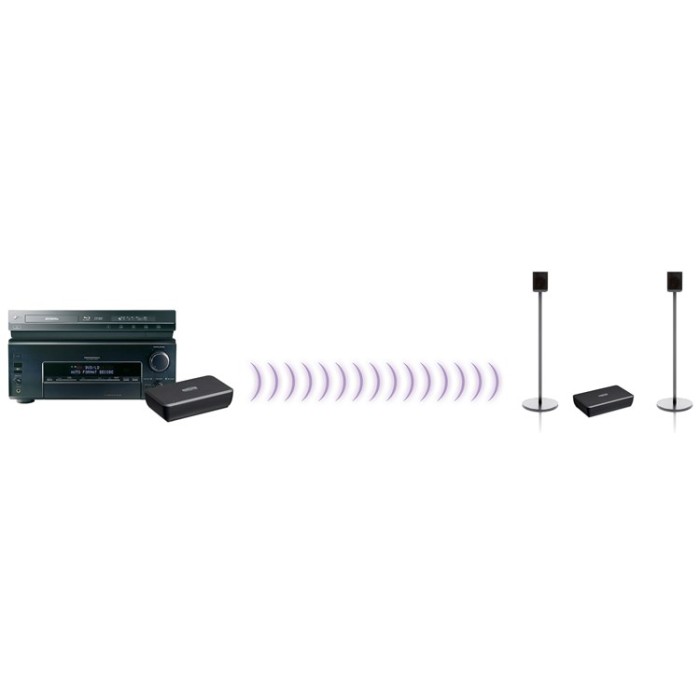

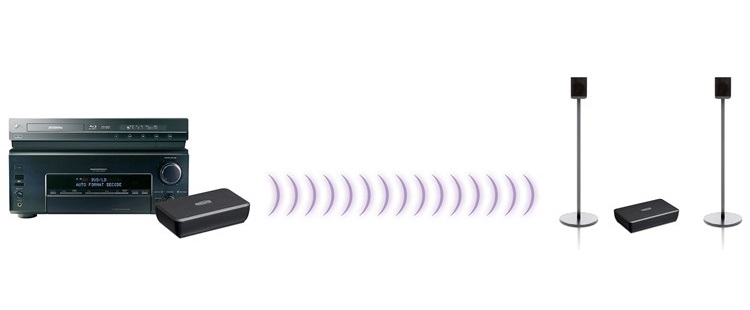

How it works?

Connect Marmitek Surround Anywhere 221 transmitter to your Surround set. Connect Marmitek Surround Anywhere 221 receiver with your rear passive speakers. All the steps are mentioned in the manual.

Features

Transmitter:

Supply voltage: 230VAC +10% -15% 50 Hz, 5V/600mA

Idle power consumption: < 0.5W

Audio transmission method: Digital

Transmitter frequency: 2.4 GHz

Connection with receiver: Secure ID Pairing

Sample frequency: 48KHz

Audio Input Level: (Max) 11 V (RMS ) @ 120 ohm

Transmitter operating range: max. 30 m line of sight, max 10 m through walls and ceilings

Receiver

Supply voltage 230VAC +10% -15% 50Hz, 18V/3600mA

Idle power consumption < 2.5W

Output power 2 x 50 W (2 x 25W RMS)

Frequency response: 20Hz - 20kHz @ 8 Ohms

Signal-to-noise ratio: 80 dB (Transmitter / Amplifier, A-weighted)

Total harmonic distortion: < 0.5% @ 1 W

Overall audio latency: <=20ms

Power efficiency: 78%

Channel separation: >=50dB

The set contents

1x Digital Audio transmitter

1x Digital Audio receiver

1x Power supply for trasmitter

1x Power supply for receiver

1 x Speaker cable 60cm

1x Instruction Manual
