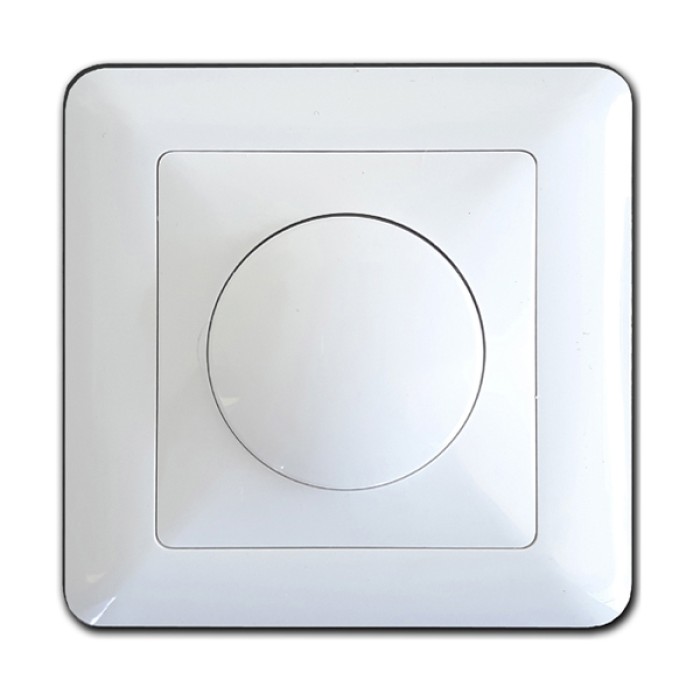

EDY - Universal Dimmer DM-4 1000W White

EDY - Universal Dimmer

DM-4 1000W White

The Dimmer DM-4 1000W is a 230V a.c./50Hz recessed voltage regulator, designed to meet the requirements for indoor lighting and ventilation regulation. The device is equipped with a rotary potentiometer to adjust the lighting, with an ON-OFF switch. It also has a trimmer for setting the lower limit.

Χαρακτηριστικά

• Operating voltage: 230 Volts a.c. / 50Hz
• Terminal cross-section: 1 x 2.5 mm or 2 x 1.5 mm
• Load power: 3W - 1000W
• Short circuit/overload protection: FUSE TUBE 5.2x20mm 5A/250V
• Operating temperature: -10 C to +60 C
• Maximum humidity: 95 %
• Construction material: ABS frame ABS case or PA66 V0
• Dimensions: 80mm x 80mm x 57mm
• Loads: Incandescent lamps, Halogen lamps, Dimmable LED lamps up to 150W, Inductive transformers up to 800VA (transformers must be charged to at least 60% of their power), Single-phase motors

The set contents
